Designed to Ensure Compatibility, Quality Control and Quicker Installation!.

Flexible Film (Softwall) Double-tier Isolator "Starter Lab" Packages


Flexible Film (Softwall) Isolator "Starter Labs"


The CBC 5' x 2' x 2' Double-Tier "Starter Lab" package not only helps maximize lab space, but ensures compatibility, quality control, Quicker installation, better traceability & easier reorders.

CBC's Double-Tier "Starter Lab" package comes with all the accessories and components required for researchers to establish a germ-free, gnotobiotic lab for viral, microbiome and microbial studies!

Note: All packages can be customized to meet a customer's specific research needs. The items listed below are included in our standard "Starter Lab" package to better give you an idea what is usually included.

Gnotobiotic islolator systems for rodents.
The CBC double-tier flexible film starter lab helps maximize floor space and comes with all the lab hardware and accessories needed for researchers to install a fully functional germ free lab that offers complete environmental control for gnotobiotic, microbiome and other research using mice or other rodents.

Double-Tier Isolator "Starter Lab" Packages

Double-tier, flexible film isolator "Starter Labs" come with all the accessories and components required for researchers to establish a functional gnotobiotic lab!

For gnotobiotic, microbiome, microbial, altered Schaedler flora and other research that requires a controlled environment.



What's Included

CBC's Double-tier, flexible film isolator "Starter Lab" packages come with all hardware necessary for assembly and for researchers to establish functional gnotobiotic lab. Note: Also available with and optional motorized adjustable frame for easier accessibility.

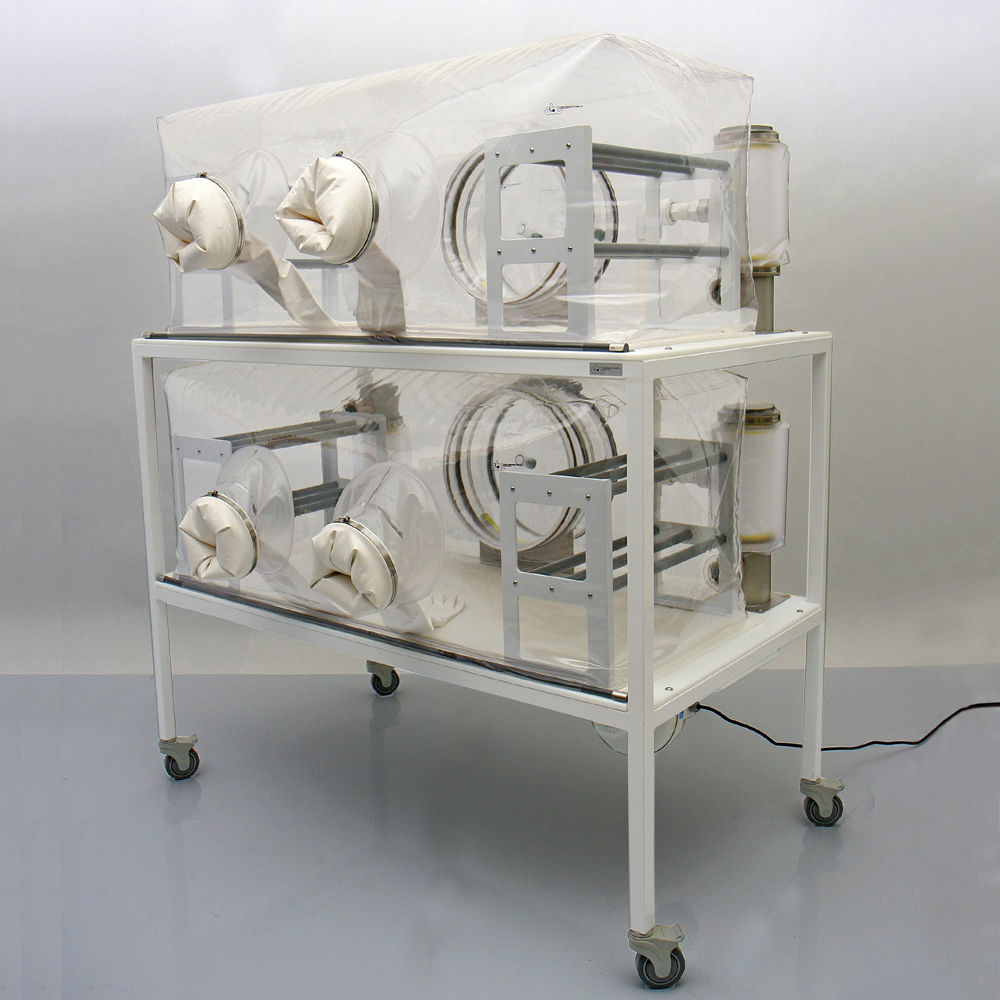

Double-Tier Isolator
Schematics/Cut Sheets


3'x2'x2' Double-Tier Schematic/Cut sheet (Model # 50362424122)

4'x2'x2' Double-Tier Schematic/Cut sheet (Model # 50482424122)

5'x2'x2' Double-Tier Schematic/Cut sheet (Model # 50602424122)

Double-Tier (EU) Schematic/Cut sheet


Standard (Positive Pressure) Double-Tier System Sizes:

  • 30" x 2' x2' – Double-Tier/Two isolators.
  • 3' x 2' x 2' – Double-Tier/Two isolators.
  • 4' x 2' x 2' – Double-Tier/Two isolators.
  • 60" W x 30" H x 27" D – EU-Double-Tier/Two isolators.
  • 5' x 2' x 2' – Double-Tier/Two isolators.
  • 6' x 2' x 2' – Double-Tier/Two isolators.
  • Note: All of the above system sizes are also available as negative pressure systems.



Double-tier Softwall Isolator "Starter Lab" package includes:

  • 1 ½" steel powder coated single shelf frame to prevent bending or warping.
  • HDPE tabletop with inserts for attaching isolator components.
  • Two-way locking wheels.
  • 5/8" PVC hold-down rod and SS clamps.
  • Blower and manifold system.
  • (2) 20 mil vinyl isolators.
  • (2) 20 mil urethane floor mat protectors for inside the isolator.
  • (2) 3/8" closed cell foam pad for under isolator.
  • (2) complete 5" diameter inlet filters & (2) complete 5" diameter outlet filters (includes filter media, filter covers, rubber bands and clamps). Note: Lower inlet port and upper outlet port can easily handle warm, moist air. Combined with our standard 5" filters (vs. competitive 3" filters), this design provides greater airflow and improves the isolator's living environment. (see graphic below).
  • (4) 2" neoprene stoppers.
  • (2) Transfer ports (size & type to your specifications)*.
  • (2) Port to isolator neoprene bands and clamps for sealing isolator to transfer port.
  • (2) each of inside and outside transfer port caps.
  • (2) Patent clamps for attaching outside port cap to transfer port.
  • (1) Patent clamp for sterilizing cylinder.
  • (2) inside rubber band for attaching inside transfer port cap.
  • (2) pairs of 12" diameter/8"glove port CBC glove extensions for better worker dexterity and less stress on isolator. (Note: Available without.)
  • (2) pairs of 15 mil Hypalon/CSM Dry Box Gloves with glove ring kit for attaching gloves to isolator (other types available).
  • (4) 1" neoprene stoppers (other types available).
  • (4) internal racks that can accommodate up to nine mouse cages each.
  • (2) Sterilizing Cylinder (size & type to your specifications).
  • (1) Double-tier sterilizing cylinder transfer cart/trolley with two-way locking wheels.
  • (2) Transfer sleeves for connecting sterilizing cylinder to transfer port.
  • (1) roll of Mylar film.
  • (6) rolls Mylar tape.
  • (1) Atomizer, hose, compressor and cart.
  • (6) rolls yellow vinyl tape.
  • (1) set of inside and outside replacement port caps.
  • (1) replacement transfer sleeve.
  • (1) TransDisk™.
  • (1) roll vinyl patch tape.
  • "Starter Lab" package is customizable.
Click here for list of features included with the CBC Single-tier Isolator "Starter Lab."
The CBC Double-tier flexible film starter lab comes with all the lab hardware and accessories needed for researchers to install a fully functional germ free lab that offers complete environmental control for gnotobiotic, microbiome and other research using mice or other rodents. Click here to download flyer.

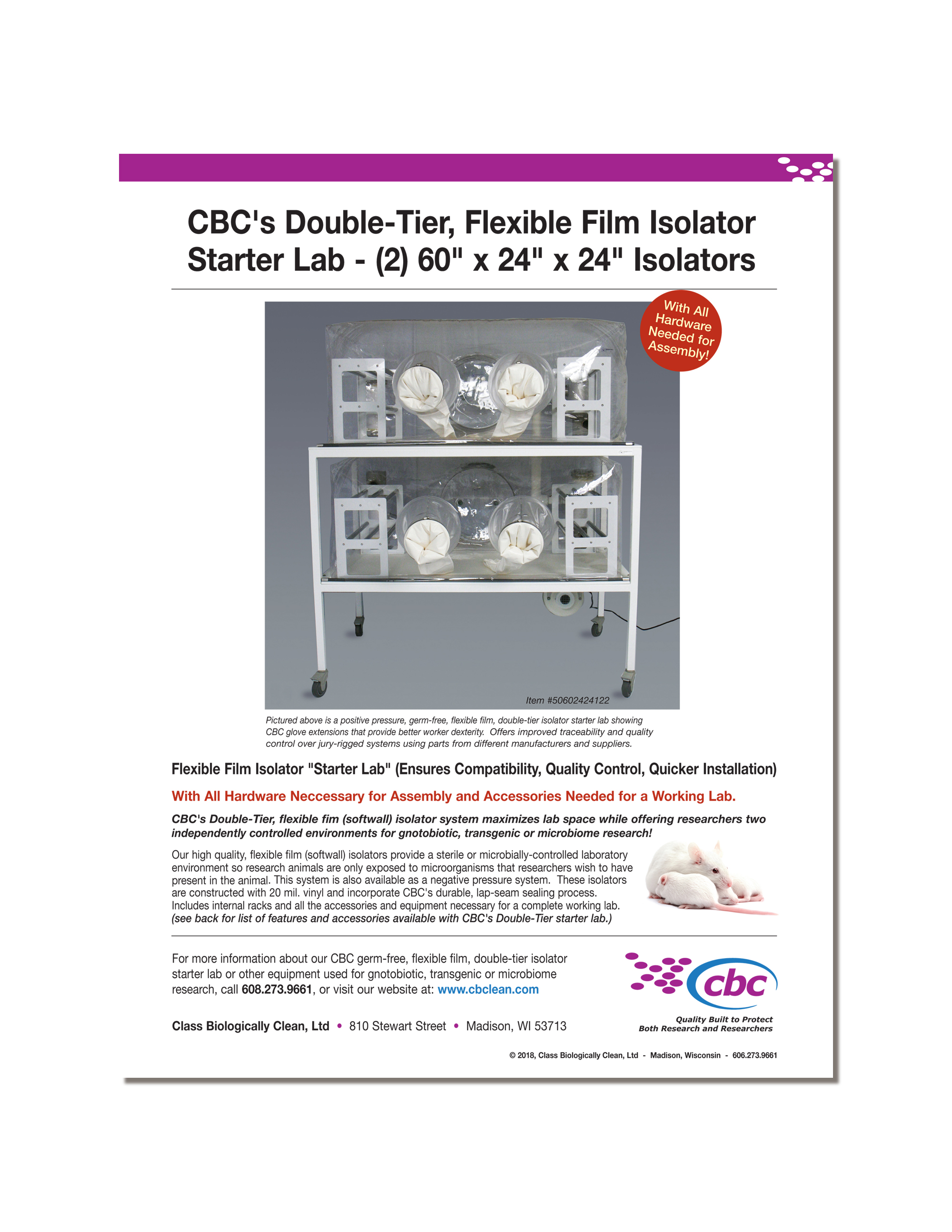

Download Printable Flyer

Download a printable flyer about the CBC Double-tier Starter Lab.

Download Printable PDF

Download Printable (EU) PDF

Download Printable PDF of Negative Pressure System

CBC' Quality Control Tracking

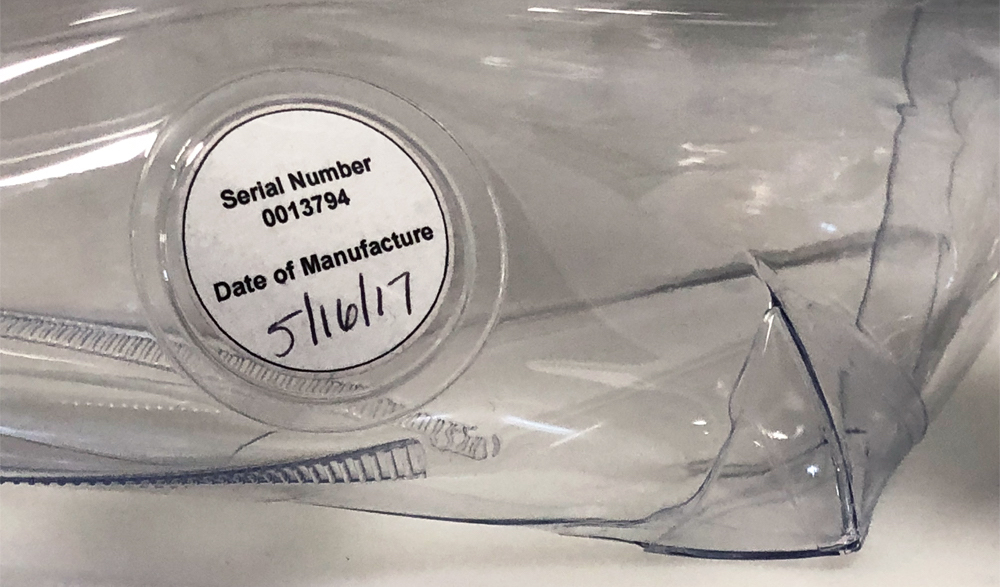

Each CBC Flexible Film Canopy is Marked With its Own Unique Serial Number .

When you buy one of our gnotobiotic isolator systems or just a canopy, your canopy will be marked with its own unique serial number and manufacture date. Should you ever have a issue with the canopy (or need a replacement) CBC can trace your canopy back to the exact specs previously ordered. The same for replacement canopies for existing frames and filter systems.

  • Traceability.
  • Faster replacement.
  • More accurate replacement.

Each CBC Flexible Film Canopy is Marked With its Own Unique Serial Number and Manufacture Date to Ensure Traceability and Better Customer Support.

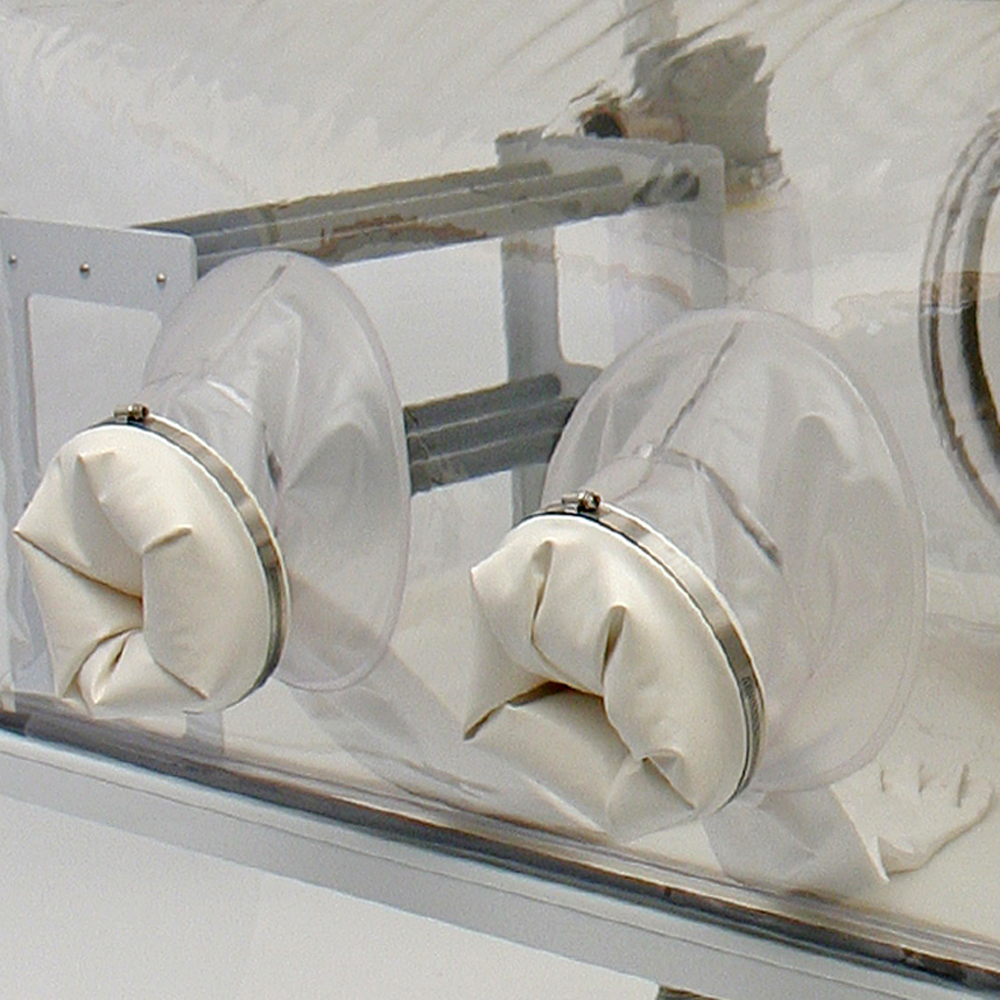

CBC glove port glove extensions for better worker dexterity and less stress on isolator.

CBC Glove Port Glove Extensions for Better Worker Dexterity and Less Stress on Isolator

CBC glove extensions (optional) provide better worker dexterity and help reduce stress on isolators at a critical seam areas.  Read more

The CBC Difference

The CBC difference includes our original lap-seam sealing process and the use of 20 mil. polyurethane material that is almost indestructible and helps ensure against contamination due to accidental puncture or tear.

CBC uses a highly durable "lap seam" seal for the majority of our seams, and an even superior "cut/weld/strip seam" seal for high risk areas. Because your reputation, research or production should not risk being compromised!    (See, "Pull Test" and "Puncture Demonstration" videos below.)

The CBC Lap-Seal Seam "Pull" Test

Single Seam Seal vs. CBC Lap Seal Seam  Read more

Because your reputation, research or production should not risk being compromised!
20 mil. Polyurethane Puncture Demonstration

CBC's 20 mil. polyurethane material is almost indestructible and helps ensure against contamination due to accidental puncture or tear.  Read more

Because your reputation, research or production should not risk being compromised!

Improved Living Environment

CBC's lower filter inlet port and upper filter outlet port can more efficiently remove warm, moist air. What's more, our 5" diameter design (vs. competitive 3" diameter) provides greater airflow. The larger filter diameter combined with CBC's unique "inlet/outlet" port design help improve the isolator's living environment.

CBC's lower filter inlet port and upper filter outlet port can more efficiently remove warm, moist air. What's more, our 5 inch diameter design vs. competitive 3 inch diameter provides greater airflow. The larger filter diameter combined with CBC's unique inlet/outlet port design help improve the isolator's living environment.

Accessories and Components:

CBC 9-cage isolator rack for Single- and Double-tier isolator systems.
Internal 9-Cage Isolator Rack

9-cage is standard. 5-cage racks for CBC's Quad isolator system. Custom sizes are available.  Read more

CBC's internal isolator cage racks are easier and faster to assemble!
CBC Patent Clamp for quick attaching transfer port caps.
CBC Patent Clamp

CBC's Patent Clamp for quickly, and securely attaches transfer port caps.  Read more

Patent Clamp with neoprene-gooved band reduces need for vinyl tape
Transfer Sleeves used for isolator to isolator attachments and sterilizing cylinder to isolator connections.
Sterilizing Autoclave Cylinder for water, bedding, cages and other components used in animal research.
Stainless Steel Transfer Carts (Trolleys) with table clamps to secure CBC sterilizing cylinders in place and prevent accidents
Stainless steel, acrylic polypropolene transfer ports.
Transfer port caps with and without flanges.
Transdisk allows you to transfer mice without a transfer sleeve.

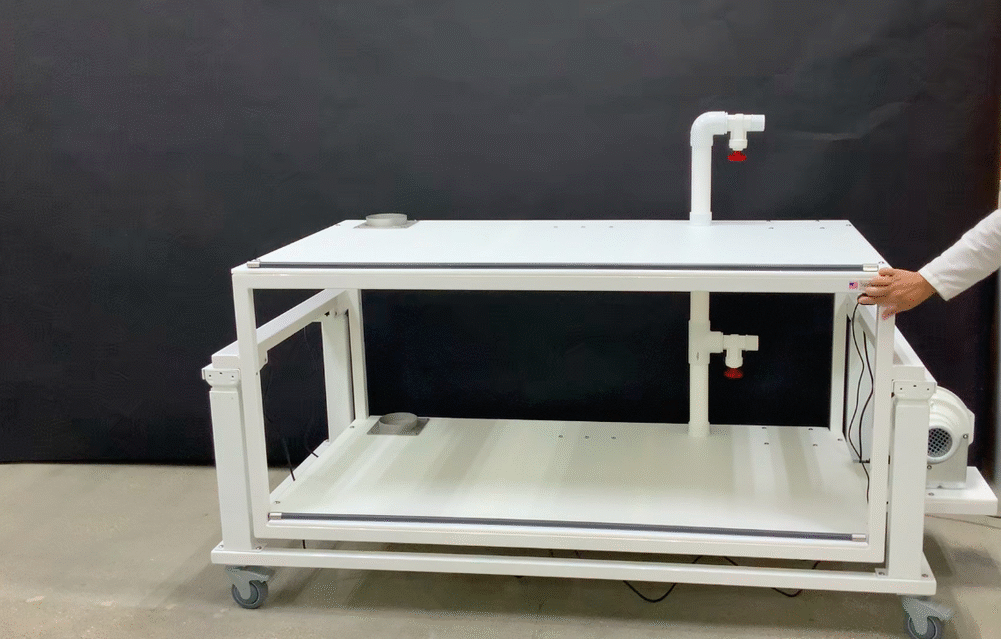

Optional Adjustable Frame

For easier accessibility. The motorized adjustable frame goes up or down 30 inches, allowing isolator technicians easier access to the top tier isolator(s).

Tje optional CBC frame goes up or down 30 inches, allowing isolator technicians easier access to the top tier isolator(s).
Original lap-seam seal flexible film, germfree isolator.
Manufacturing high quality, flexible film isolators for universities, researchers and germ-free animal producers since 1978.
CBC Double-tier flexible film isolator systems come with all the hardware and components necessary for assembly.

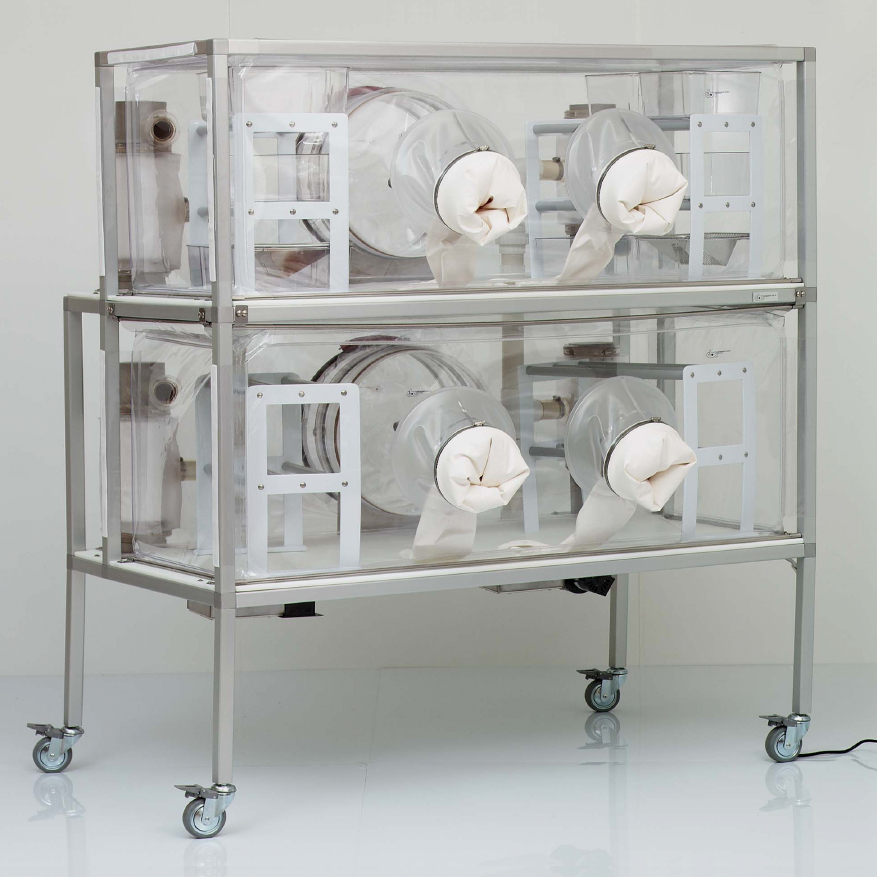

Negative Pressure Double-Tier Isolator System

CBC Negative pressure, Double-Tier isolators help maximize lab space.

Our Double-tier negative pressure, flexible film isolator systems comes with all hardware and components necessary for assembly.   More Information
