Four (4) Independent Isolators in One Footprint

Quad Flexible (Softwall) Isolator


Quad Gnotobiotic Isolator System


Allows Researchers to Conduct Four Different Experiments at One Time

Maximize use of limited laboratory space. Four (4) independent isolators in one footprint allows you to conduct four different experiments at one time. This system is also available as a single-tier (two isolators) and as a negative pressure system.

Gnotobiotic islolator systems for rodents.

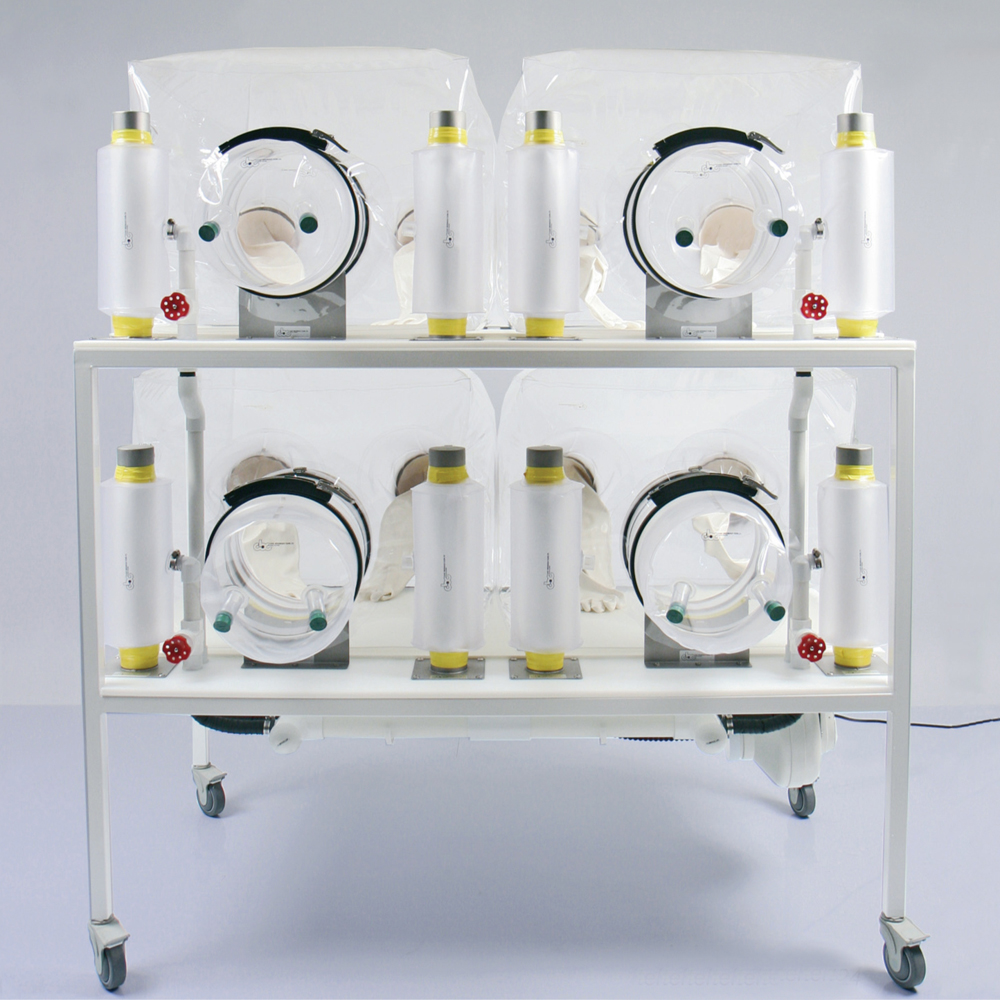

The CBC Quad Isolator System maximizes lab space and allows researchers to conduct four different experiments with germ-free, gnotobiotic mice or other rodents at one time.

Quad Flexible Film Isolators

Positive Pressure ● Negative Pressure

For gnotobiotic, microbiome, microbial, altered Schaedler flora and other research that requires a controlled environment.

Double Table - 4 isolators (Model# 50302424122)



What's Included

Four (4) 30" X 24" X 24" independent isolators in one footprint allows you to conduct four different experiments at one time. Note: Also available as a single-tier (2) isolator system. Also available with and optional motorized adjustable frame for easier accessibility.


Quad Isolator
Schematics/Cut Sheets


Quad/Two-Tier (Four 30" X 24" X 24" isolators) Schematics/Cut Sheets (Model # 50302424122)

Single-Tier (Two 30" X 24" X 24" isolators) Schematic/Cut Sheet (Model# 50302424121A)


Quad Isolator Features:

  • 1 1/2" steel powder coated single shelf frame to prevent bending or warping.
  • HDPE tabletop with inserts for attaching isolator components.
  • Two-way locking wheels.
  • 5/8" PVC hold-down rod and SS clamps.
  • Blower and manifold system.
  • (4) Durable 20 mil vinyl isolators.
  • (4) 20 mil urethane floor mat protectors for inside isolators.
  • 3/8" closed cell foam pads for under isolators.
  • (8) compete 3" diameter filters. Includes: stands, media and filter covers.
  • (4) pairs of 12" diameter/8" CBC glove port extensions for better worker dexterity and less stress on isolator. (Note: Available without.)
  • (4) pairs of 15 mil Hypalon/CSM dry box gloves with glove ring kit for attaching gloves to isolator (other types available).
  • (4) 12" acrylic transfer ports.
  • (4) port to isolator neoprene bands and clamps for sealing isolator to transfer port.
  • (8) 1" neoprene stoppers (other types available).
  • (4) internal racks that can accommodate up to 5 mouse cages each.
  • (4) outside transfer port caps.
  • (4) Patent clamps for attaching outside port cap to transfer port.
  • (4) inside transfer port caps.
  • (4) patent clamps.
The CBC Quad isolator maximizes lab space and allows researchers to conduct four different experiments with germ-free, gnotobiotic mice or other rodents at one time. Click here to download flyer.

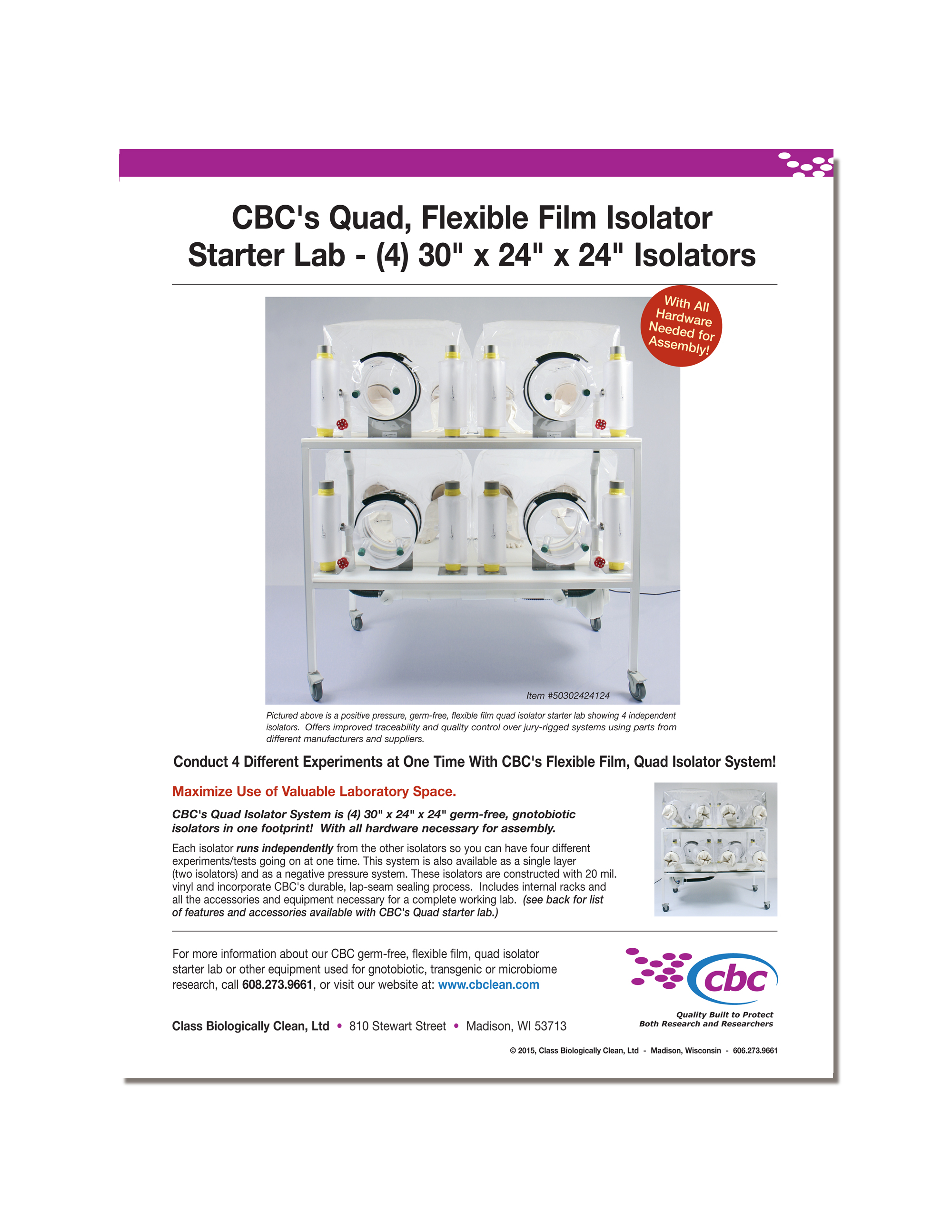

Download Printable Flyer

Download a printable flyer about the CBC Quad Isolator System.

Download Printable PDF

Download Printable (EU) PDF

The CBC Difference

The CBC difference includes our original lap-seam sealing process and the use of 20 mil. polyurethane material that is almost indestructible and helps ensure against contamination due to accidental puncture or tear.

CBC uses a highly durable "lap seam" seal for the majority of our seams, and an even superior "cut/weld/strip seam" seal for high risk areas. Because your reputation, research or production should not risk being compromised!    (See, "Pull Test" and "Puncture Demonstration" videos below.)

The CBC Lap-Seal Seam "Pull" Test

Single Seam Seal vs. CBC Lap Seal Seam  Read more

Because your reputation, research or production should not risk being compromised!
20 mil. Polyurethane Puncture Demonstration

CBC's 20 mil. polyurethane material is almost indestructible and helps ensure against contamination due to accidental puncture or tear.  Read more

Because your reputation, research or production should not risk being compromised!

Accessories and Components:

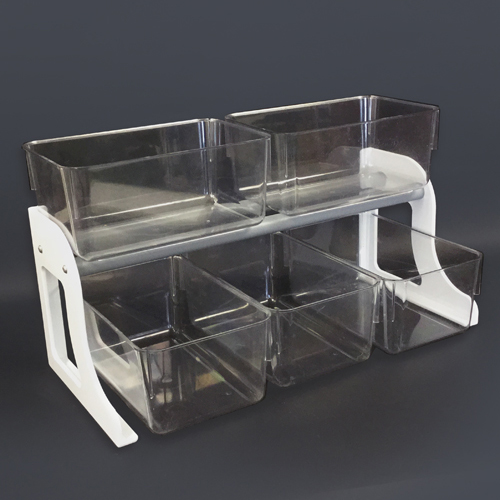

CBC 5-cage isolator rack for the CBC Quad Isolator system.
Internal 5-Cage Isolator Rack

5-cage racks for CBC's Quad isolator system. 9-cage is standard and custom sizes are available.  Read more

CBC's internal isolator cage racks are easier and faster to assemble!
CBC Patent Clamp for quick attaching transfer port caps.
CBC Patent Clamp

CBC's Patent Clamp for quickly, and securely attaches transfer port caps.  Read more

Patent Clamp with neoprene-gooved band reduces need for vinyl tape
Transfer Sleeves used for isolator to isolator attachments and sterilizing cylinder to isolator connections.
Sterilizing Autoclave Cylinder for water, bedding, cages and other components used in animal research.
Pre-cut filter media for sterilizing cylinders and isolator filters.
Stainless steel, acrylic polypropolene transfer ports.
Transfer port caps with and without flanges.
Transdisk allows you to transfer mice without a transfer sleeve.

Optional Adjustable Frame

For easier accessibility. The motorized adjustable frame goes up or down 30 inches, allowing isolator technicians easier access to the top tier isolator(s).

Tje optional CBC frame goes up or down 30 inches, allowing isolator technicians easier access to the top tier isolator(s).
Original lap-seam seal flexible film, germfree isolator.
Manufacturing high quality, flexible film isolators for universities, researchers and germ-free animal producers since 1978.

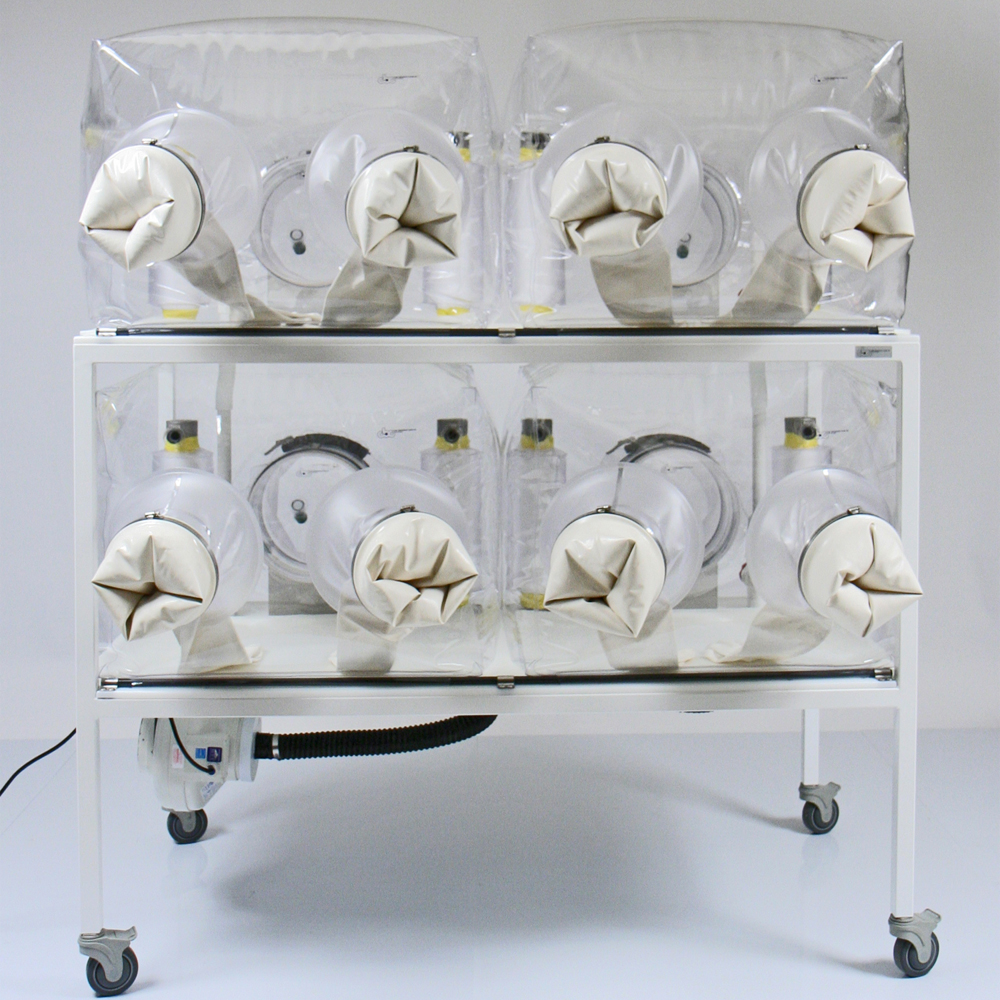

View of CBC Quad Isolator Systems for mice or other rodents with gloves on the side.

(4) 30" x 24" x 24" Isolators in One Footprint

Maximize use of limited laboratory space. Allows researchers to conduct four different experiments at one time.

Positive Pressure or Negative Pressure

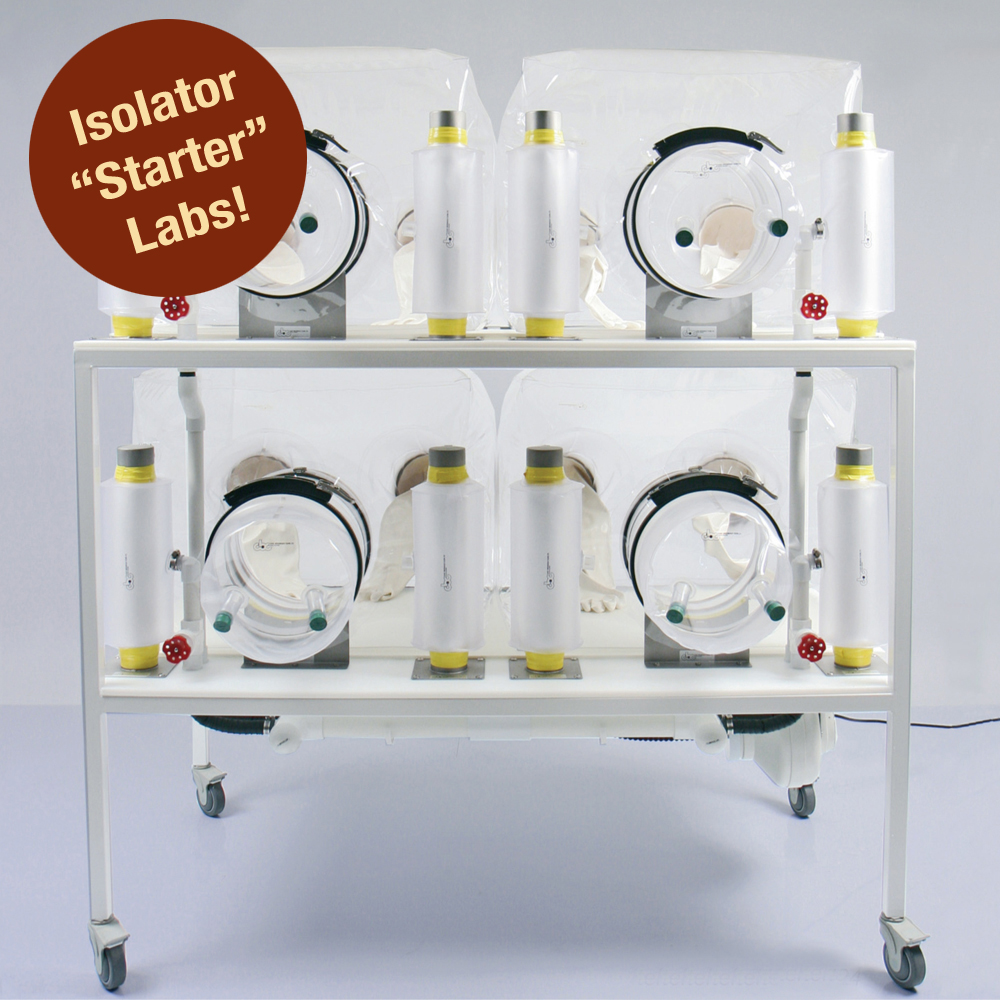

CBC Quad Isolator Starter Labs come with all the accessories and components necessary for researchers to have a functional gnotobiotic lab.

Quad Starter Lab

Maximize use of limited laboratory space. Allows researchers to conduct four different experiments at one time.

CBC Quad Isolator Starter Labs come with all the accessories and components necessary for researchers to have a functional gnotobiotic lab.   More Information
