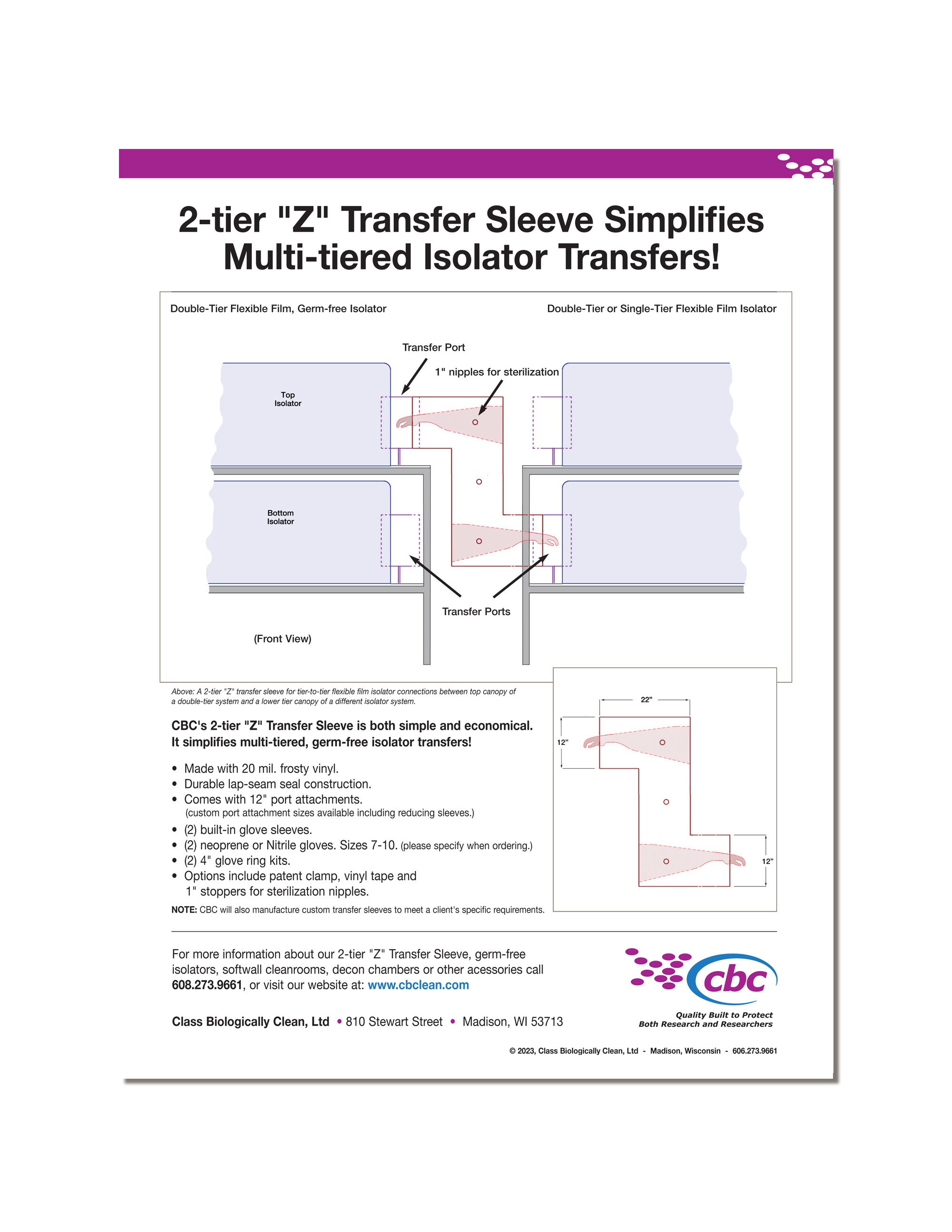

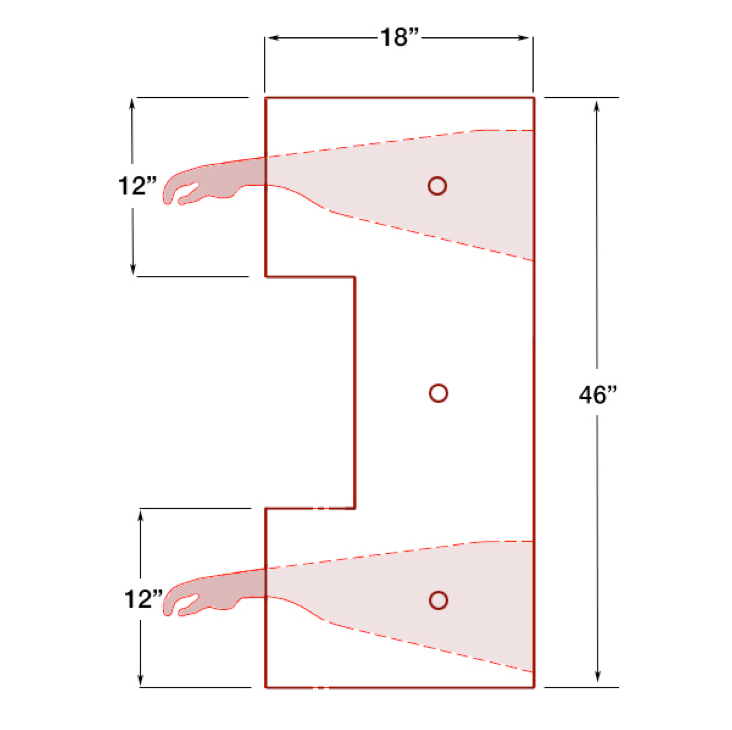

CBC's 2-tier Z-shaped Transfer Sleeve is both simple and economical. It simplifies multi-tiered, germ-free isolator transfers from system to system!

• Made with 20 mil. frosty vinyl.
• Durable lap-seam seal construction.
• Comes with 12" port attachments. (custom port attachment sizes available including reducing sleeves.)
• (2) built-in glove sleeves.
• (2) neoprene or Nitrile gloves. Sizes 7-10. (please specify when ordering.)
• (2) 4" glove ring kits.
• (3) 1" sterilization nipples.
• Options include patent clamp, vinyl tape and 1" stoppers for sterilization nipples.

2-tier Z-shaped Transfer Sleeve package options:

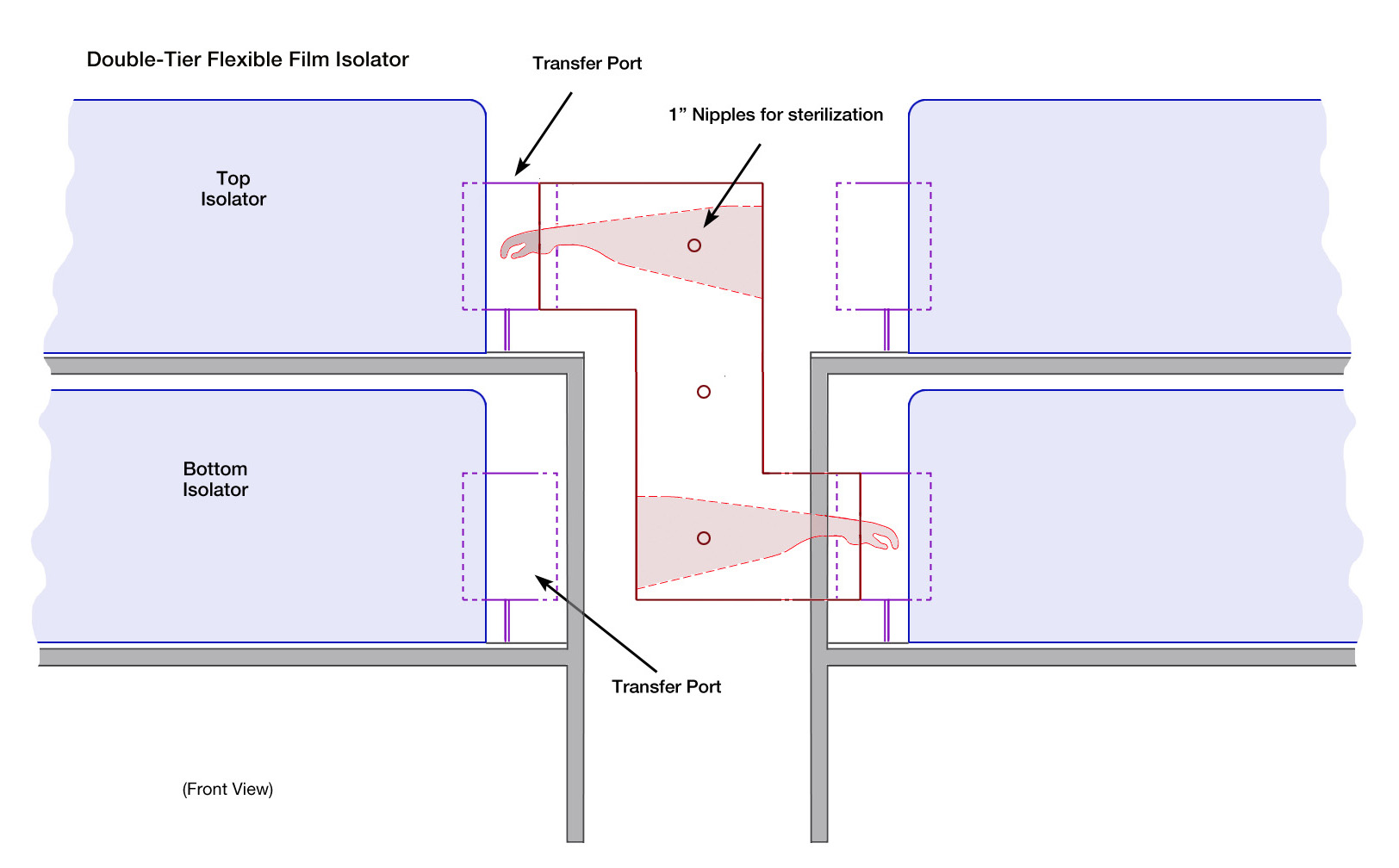

• Z-Shaped for connecting top isolator of a two-tier isolator system with a separate lower-tier isolator (Includes Sleeve, Glove Sleeve, Hand Gloves and 4” Connecting Kit)
• Z-Shaped for connecting top isolator of a two-tier isolator system with a separate lower-tier isolator (Includes Sleeve with three 1” Nipples, three 1” Stoppers, 2-MP Glove Extensions, 1-8” Glove Connection Kit [DOES NOT INCLUDE GLOVES]
• 12”x 12”, Z-Shaped with 1-MP Glove Extension, three 1” Nipples and 1-Glove Connecting Ring with Clamp and Band- [DOES NOT INCLUDE GLOVE]

NOTE: CBC will also manufacture custom transfer sleeves to meet a client's specific requirements.

The CBC Difference

The CBC difference includes our original lap-seam sealing process and the use of 20 mil. polyurethane material that is almost indestructible and helps ensure against contamination due to accidental puncture or tear.

CBC uses a highly durable "lap seam" seal for the majority of our seams, and an even superior "cut/weld/strip seam" seal for high risk areas. Because your reputation, research or production should not risk being compromised!    (See, "Pull Test" and "Puncture Demonstration" videos below.)
