For Limited Lab Space and also for Gnotobiotic Rodent Quarantine or Lab Transport.
"Space Saver" Flexible Film Isolators
Flexible Film "Space Saver" Isolator Systems
For limited lab space and also for gnotobiotic animal quarantine or lab transport
CBC's "Space Saver" flexible film isolators are ideal researchers with limited lab space and also for transporting germ-free mice or other rodents within a lab, for sterilization testing or as a quarantine isolator so researchers can avoid putting the health and well-being of their research animals in jeopardy when adding new animals to the colony.
"Space Saver" Isolators
Compact Size, Durable and Economical
Ideal for Labs with Limited Space, Lab Transport or Animal Quarantine!
Note: Also ideal for use as a containment isolator for the testing of supplies (feed and bedding) to help verify proper sterilization.
Standard (Positive Pressure) System Sizes:
- 30" x 2' x 2' – Single-Tier/One isolator. (Model# 50302424121)
- 30" x 2' x 2' – Single-Tier/Two isolators. (Model# 50302424121A)
- 30" x 2' x 2' – Double-Tier/Two isolators. (Model# 50302424122)
- 3' x 2' x 2' – Single-Tier/One isolator. (Model# 50362424121)
- 3' x 2' x 2' – Double-Tier/Two isolators. (Model# 50362424122)
- Note: All of the above system sizes are also available as negative pressure systems.
"Space Saver" Flexible Film Isolator
Schematics/Cut Sheets
3' X 2' X'2' Flexible Film Schematic/Cut Sheet (Model# 50362424121)
Single-Tier (Two 30" X 2' X 2' isolators) Schematic/Cut Sheet (Model# 50302424121A)
"Space Saver" "Isolator Features:
- 1 1/2" steel powder coated single shelf frame to prevent bending or warping.
- HDPE tabletop with inserts for attaching isolator components.
- Two-way locking wheels.
- 5/8" PVC hold-down rod and SS clamps.
- Blower and manifold system.
- Durable 20 mil vinyl isolator.
- 20 mil urethane floor mat protector for inside the isolator.
- 3/8" closed cell foam pads for under isolators.
- Compete 3" diameter filters. Includes: stands, media and filter covers.
- (1) pair of 12" diameter/8" glove port extensions (36" isolator: CBC Glove Extensions, 30" isolator: MP extensions.) for better worker dexterity and less stress on isolator. (Note: Available without.)
- (1) pair of 15 mil Hypalon/CSM dry box gloves with glove ring kit for attaching gloves to isolator (other types available)
- 12" acrylic transfer port.
- Port to isolator neoprene band and clamp for sealing isolator to transfer port.
- (2) 1" neoprene stoppers (other types available).
- (1) internal supply rack or cage rack per isolator canopy:
- 36" isolator canopy can accommodate an 8-cage rack.
- 30" isolator canopy can accommodate a 5-cage rack. - (1) outside transfer port cap.
- (1) inside transfer port cap.
- (1) Patent clamp for attaching outside port cap to transfer port.
- Battery for transport (optional).
Compact, Durable and Economical - CBC's Small Isolator is Ideal for Animal Quarantine!
With CBC's 36" or 30" flexible film quarantine isolators, researchers can avoid putting the
health and well-being of their research animals in jeopardy. New introductions to the general research colony can be quarantined, tested and
acclimated to minimize the possibility of introducing diseases into the general population.
Some studies recommend that even allegedly clean or SPF animals should be kept in quarantine until tested locally for pathogens before they or
their offspring are introduced into the general population.

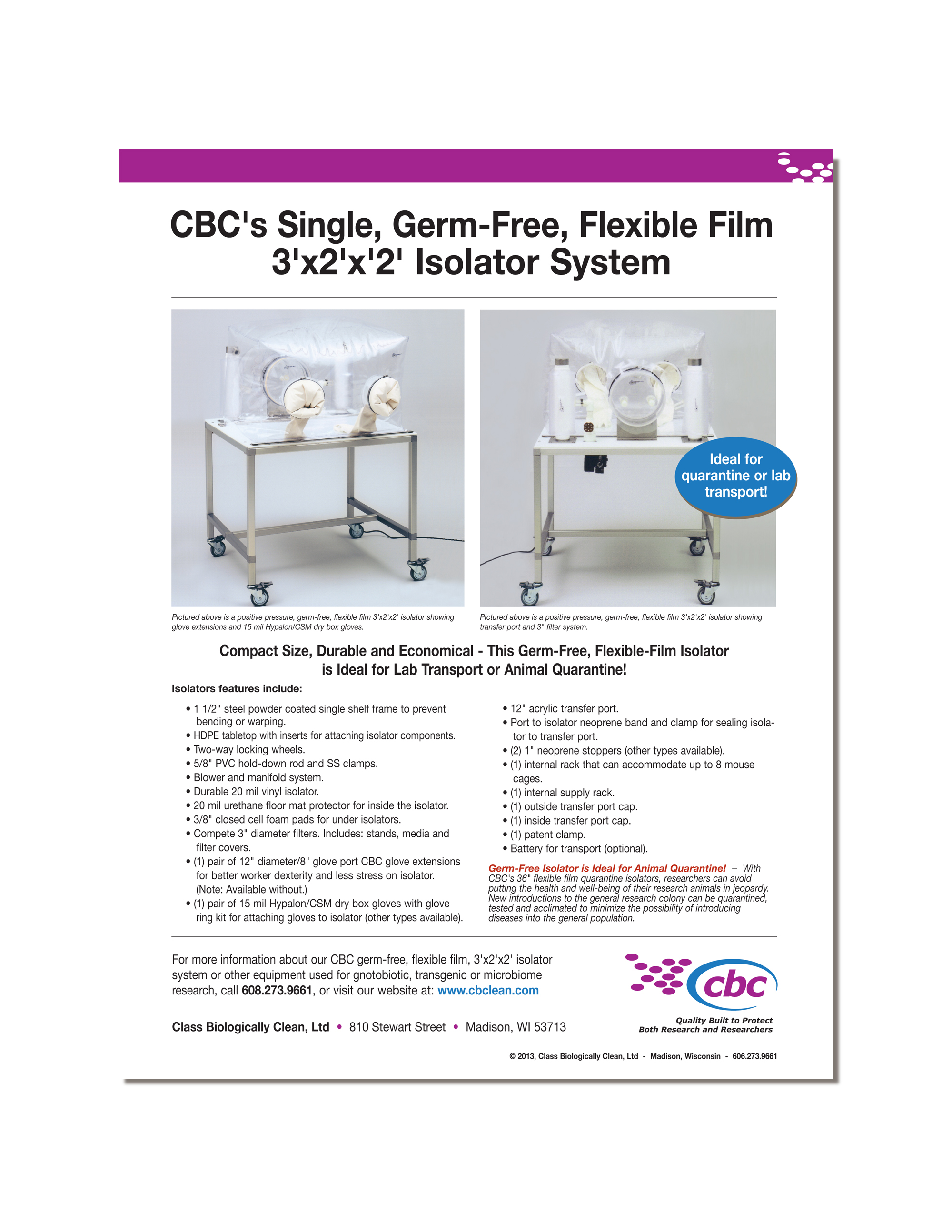

Download Printable Flyer
Download a printable flyer about the CBC flexible film, "Space Saver" isolator system.
Download Printable PDF
Download Printable (EU) PDF
The CBC Difference
The CBC difference includes our original lap-seam sealing process and the use of 20 mil. polyurethane material that is almost indestructible and helps ensure against contamination due to accidental puncture or tear.
CBC uses a highly durable "lap seam" seal for the majority of our seams, and an even superior "cut/weld/strip seam" seal for high risk areas. Because your reputation, research or production should not risk being compromised! (See, "Pull Test" and "Puncture Demonstration" videos below.)
The CBC Lap-Seal Seam "Pull" Test
Single Seam Seal vs. CBC Lap Seal Seam Read more
Because your reputation, research or production should not risk being compromised!
20 mil. Polyurethane Puncture Demonstration
CBC's 20 mil. polyurethane material is almost indestructible and helps ensure against contamination due to accidental puncture or tear. Read more
Because your reputation, research or production should not risk being compromised!
Accessories and Components:
Internal 8-Cage Isolator Rack
8-cage for 36" X 24" X 24" isolator systems. 9-cage is standard. 5-cage racks for 30" x 24" x 24" isolator system. Custom sizes are available. Read more
CBC's internal isolator cage racks are easier and faster to assemble!
CBC Patent Clamp
CBC's Patent Clamp for quickly, and securely attaches transfer port caps. Read more
Patent Clamp with neoprene-gooved band reduces need for vinyl tape
Manufacturing high quality, flexible film isolators for universities, researchers and germ-free animal producers since 1978.

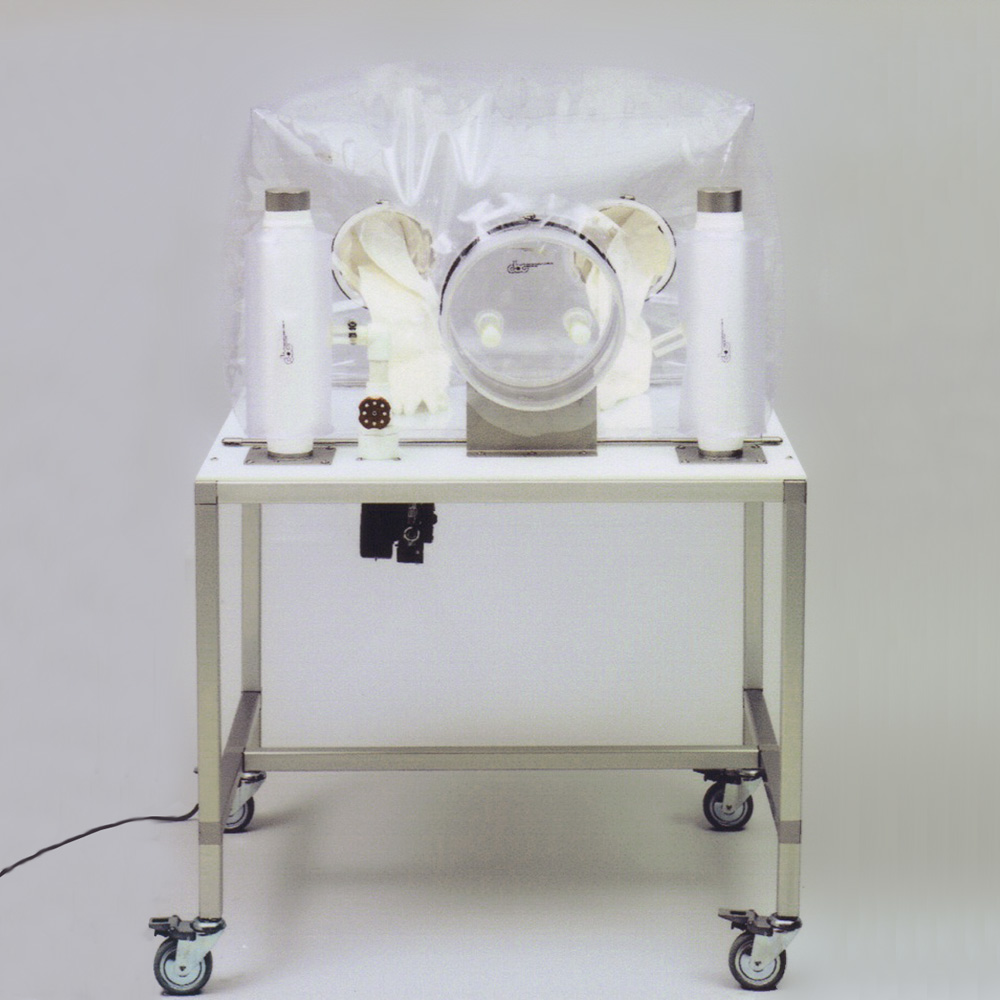

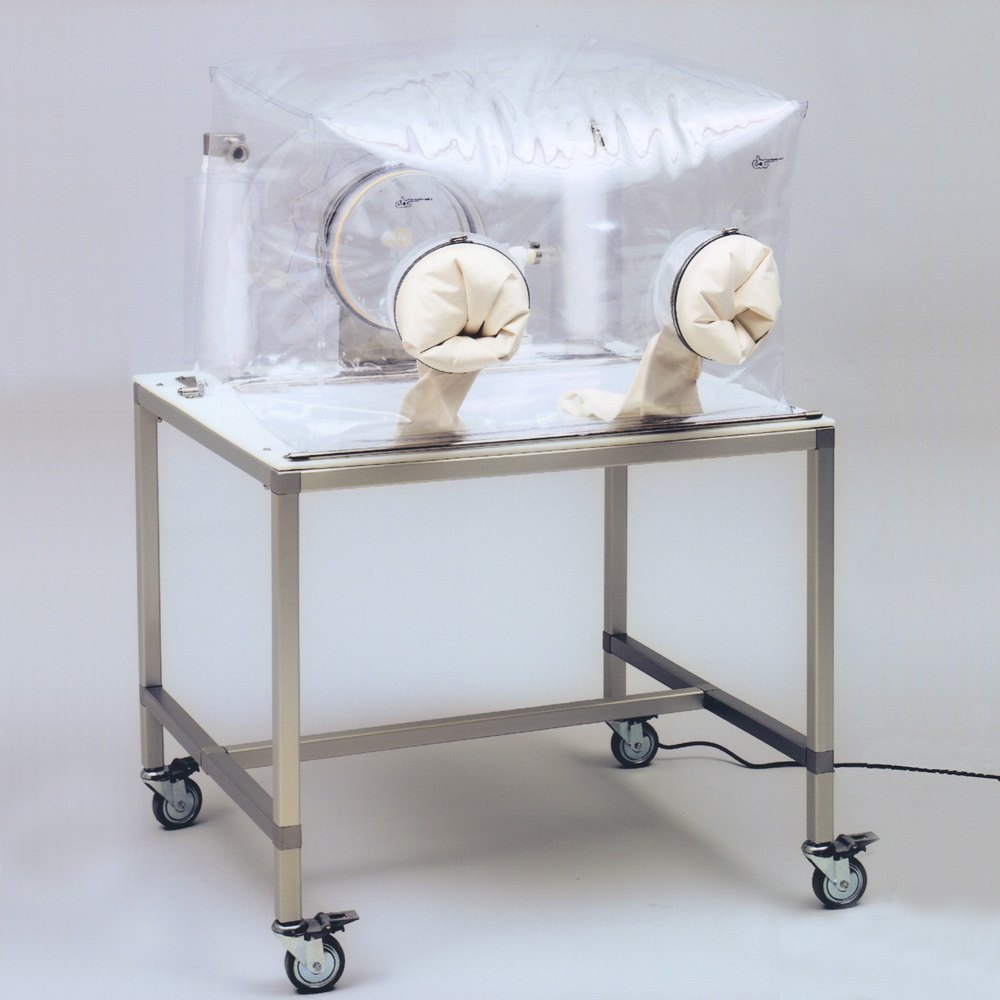

Pictured above is a Positive Pressure 3' X 2' X 2' Flexible Film Isolator
Positive Pressure
For labs with limited space, animal quarantine or lab transport.
Small Space Saver Isolator Starter Labs
•3' x 2' x 2' Flexible Film Isolator
•30" x 2' x 2' Flexible Film Isolator
Small Space Saver Starter labs come with all the accessories and component necessary for researchers to have a functional gnotobiotic lab with limited lab space. More Information
