Helps preserve the nutritional value of the feed.

Feed Sterilizing Autoclave Cylinders


Feed Sterilizing Cylinders


CBC's Autoclave Sterilizing Cylinders with a feed capacity of 110 pounds for sterilizing animal feed used in germ-free, gnotobiotic animal research.

The CBC Stainless Steel Feed Sterilizing Cylinder provides both capacity and performance. The 18" cylinder features six full length trays. Tray depth is two inches with nearly an inch of space between trays. Limiting the tray depth to two inches insures the complete sterilization of feed with minimal time and temperature. This helps preserve the nutritional value of the feed.

CBC 4-tray Feed Sterilizing Cylinder fully wrapped with filter media.

Feed Sterilizing Cylinder


• Constructed out of stainless steel

• Glass bead finish

• Four carrying handles

CBC Feed Sterilizing Cylinders have large vent openings to increase steam/heat penetration rate.

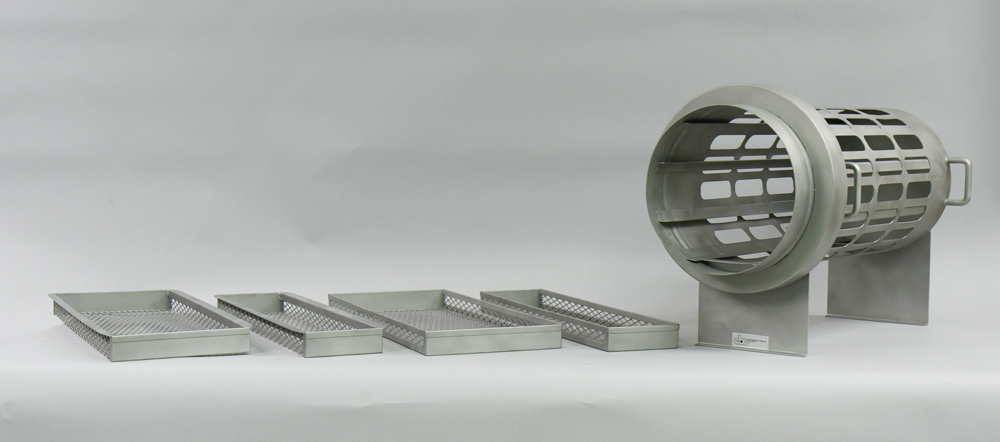

Unwrapped 12 inch diameter x 24 inch long Sterilizing Feed Cylinder with (4) four feed trays and (optional) support collar showing large vent openings to increase steam/heat penetration rate.

Above: Unwrapped 12" dia. x 24" long Sterilizing Feed Cylinder with (4) trays and (optional) support collar.


Autoclave Feed Standard Cylinder Features:


  • 3 layers of DW4 filter media
  • Stainless steel clamp
  • Sterilizing cylinder is constructed out of stainless steel
  • Glass bead finish
  • Large vent openings to increase steam/heat penetration rate
  • Four carrying handles
  • Preserves nutritional value of feed
  • NOTE: Feed tray racks are not in the way of the supply tray so cylinder can also be used as a regular supply cylinder.

Standard Sizes:


  • 12" dia. x 24" long (4 feed trays)
  • 18" dia. x 30" long (6 feed trays)
  • Custom sizes available on request. CBC will custom size your sterilizing cylinder to better fit your autoclave and meet your laboratory requirements. Sometimes it's doing something simple like reducing the height of the cylinder legs so the sterilizing cylinder can better fit your autoclave shelves. Or, if we just reduce the diameter by a couple of inches, you can then fit two cylinders into your autoclave side-by-side.

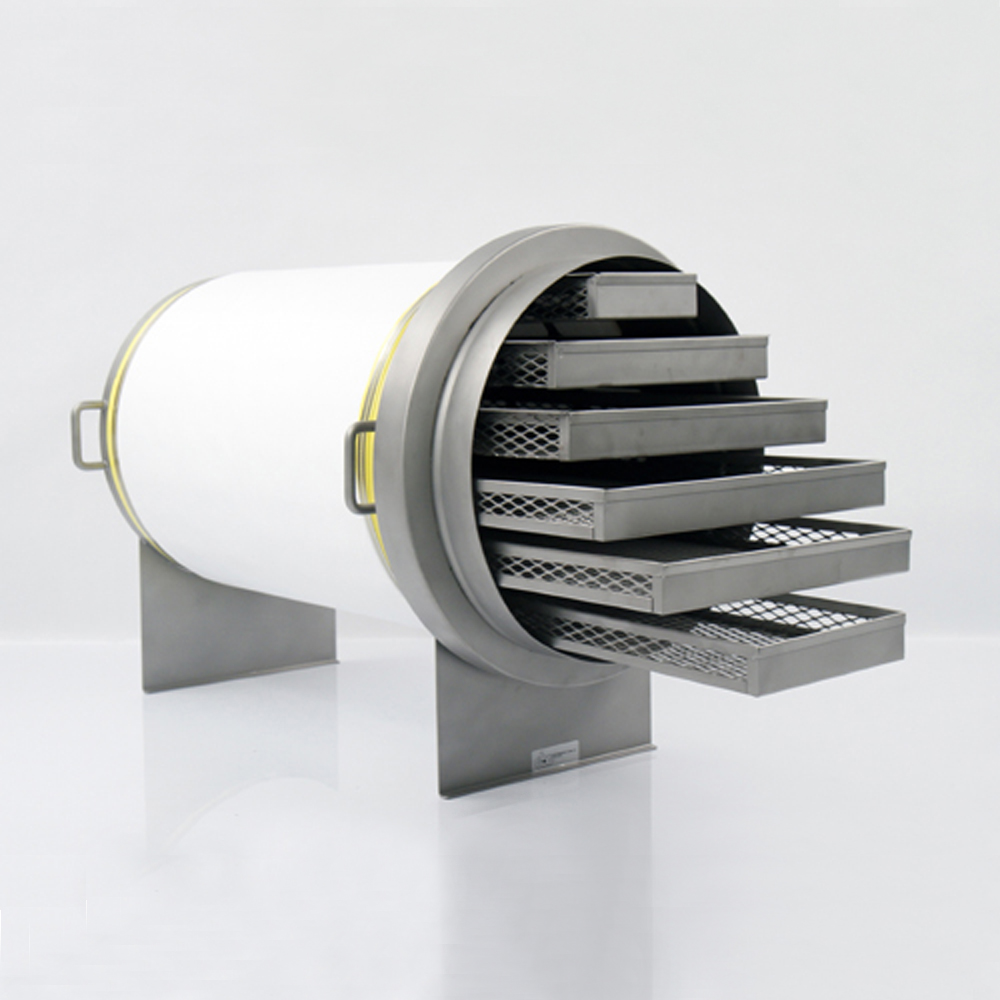

18 inch diameter x 24 inch long (fully wrapped with filter media) Feed Sterilizing Cylinder with (6) six trays and (optional) support collar.

Above: is a 18" diameter x 24" long (fully wrapped with filter media) Feed Sterilizing Cylinder with (6) six trays with (optional) support collar.

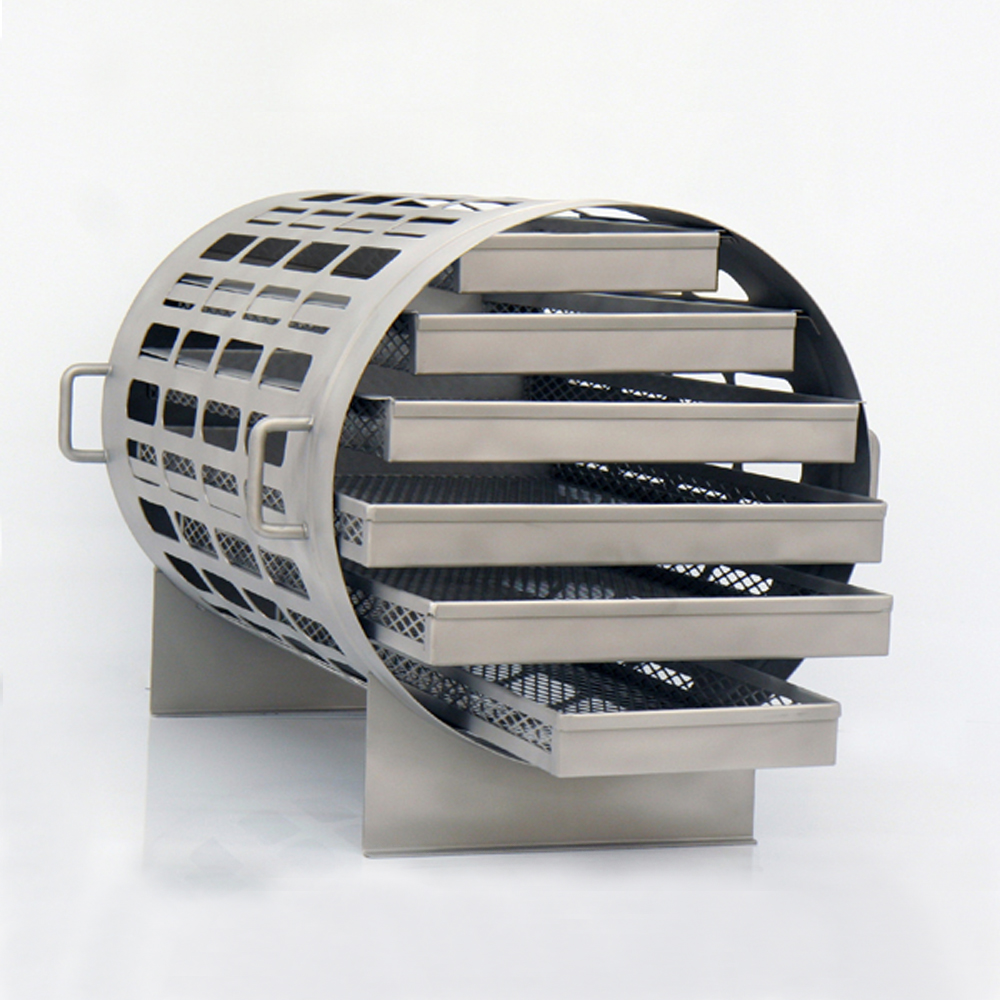

18 inch diameter x 24 inch long (unwrapped) Feed Sterilizing Cylinder with (6) six trays and no support collar.

Above: 18" diameter x 24" long (unwrapped) Feed Sterilizing Cylinder with (6) six trays and no support collar.

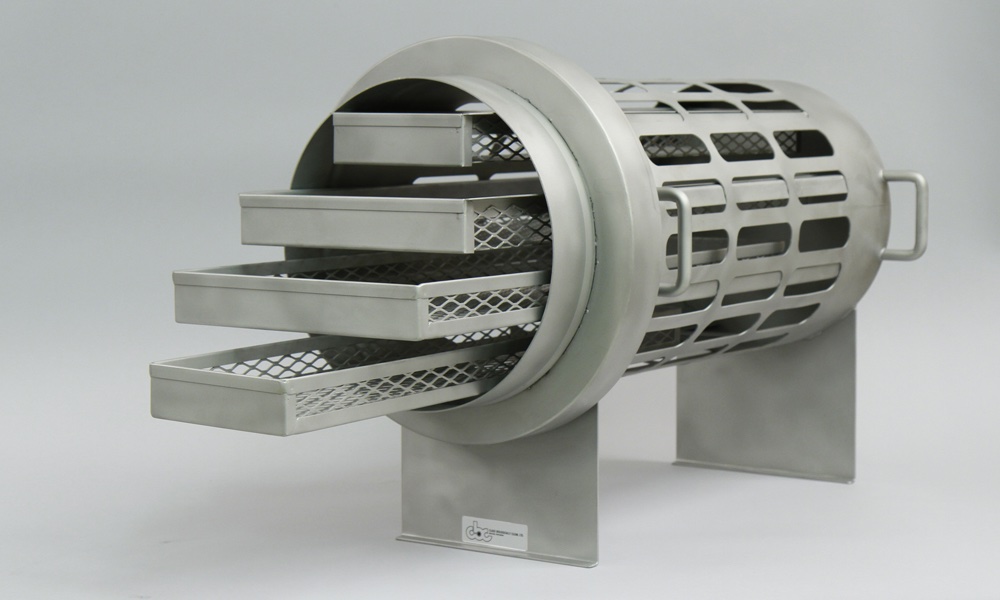

12 inch dia. x 24 inch long unwrapped Feed Sterilizing Cylinder with (4) four feed trays and (optional) support collar.

Above: Pictured is a 12" dia. x 24" long unwrapped Feed Sterilizing Cylinder with (4) four feed trays and (optional) support collar.

Download a printable flyer about CBC's Sterilizing Cylinder. Click here to download flyer.

Download Printable Flyer

Download a printable flyer about CBC Sterilizing Cylinders.

Download Printable PDF

Download Printable (EU) PDF

Other CBC Sterilizing Cylinders:

CBC Autoclave Standard Sterilizing Cylinders for sterilizing water, bedding, cages, etc... for gnotobiotic animal research.
CBC Standard Sterilizing Cylinders

The CBC Stainless Steel Standard Sterilizing Cylinder provides both capacity and performance. for sterilizing water, bedding, cages, etc... for gnotobiotic animal research.  Read more

12" dia. x 24" long. 18" dia. x 30" long. Custom sizes available on request.
CBC Autoclave Economy Sterilizing Cylinders for sterilizing water, bedding, cages, etc... for gnotobiotic animal research.
CBC Economy Sterilizing Cylinders

Sterilizing cylinder is constructed out of stainless steel. 3 layers of DW4 filter media. Supply tray. Stainless steel clamp. Large vent openings to increase steam/heat penetration rate.  Read more

Custom sizes available on request. Competitively priced!
Pictured is a CBC Patent Clamp being used to connect a Sterilizing Cylinder to a transfer sleeve.

Above: Pictured is a CBC Patent Clamp being used to connect a Sterilizing Cylinder to a transfer sleeve and the transfer sleeve to a transfer port. Read More.

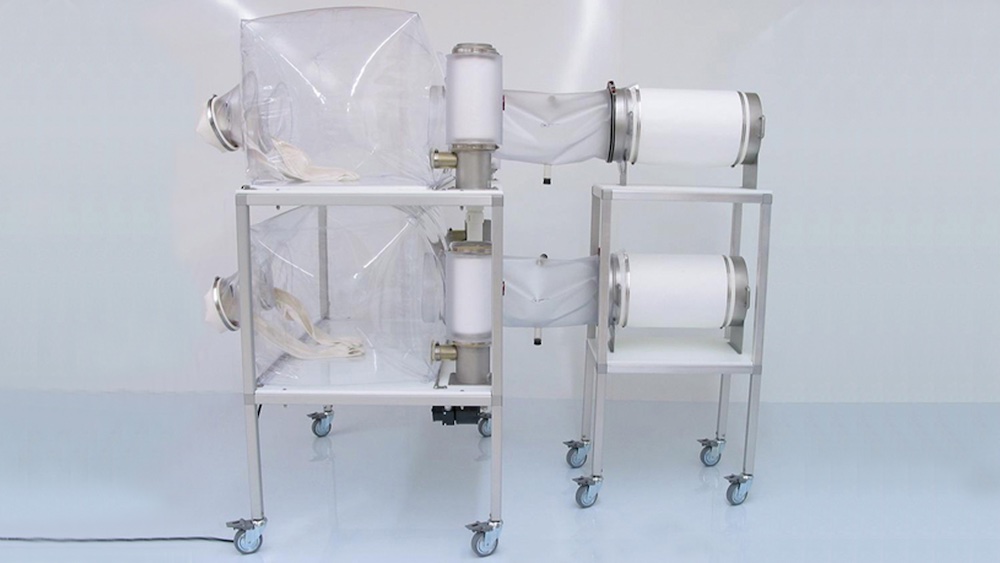

Stainless steel transfer carts/trolleys with lockable casters and table clamps to secure sterilizing cylinders in place and prevent accidents.

Above: Stainless steel transfer carts/trolleys with lockable casters and table clamps to secure sterilizing cylinders in place and prevent accidents. Read More.

Accessories and Components:

Precut filter media for Sterilizing cylinders and filters.
Pre-cut Filter Media

Save Material. Save Time.  Read more

DW4 filter media is precut to width to fit sterilizing cylinders and isolator filters.
Mylar film in rolls and precut disc shapes to cover open end of sterilizing cylinders and filter stands before autoclaving. Precut mylar discs save time!
Mylar Film

Save Material. Save Time.  Read more

Mylar film in rolls and precut disc shapes to cover open end of sterilizing cylinders and filter stands before autoclaving. Precut mylar discs save time!
Vinyl Tape.
Vinyl Tape

1" wide. 36 yards.  Read more

For wrapping filter media around sterilizing cylinders and filters.
Mylar Tape.
Mylar Tape

1" wide. 36 yards.  Read more

For attaching mylar film to sterilizing cylinders before autoclaving.
Transfer Sleeves used for isolator to isolator attachments and sterilizing cylinder to isolator connections.
Atomizer, compressor & cart.
Tear-Aid for minor flexible film canopy and glove repairs.
Stainless steel, acrylic polypropolene transfer ports.
Transfer port caps with and without flanges.
Transdisk allows you to transfer mice without a transfer sleeve.
Original lap-seam seal flexible film, germfree isolator.
Manufacturing high quality, flexible film isolators for universities, researchers and germ-free animal producers since 1978.
CBC Transfer Port Caps are made with 20 mil. vinyl and are available in standard diameters and various depths.

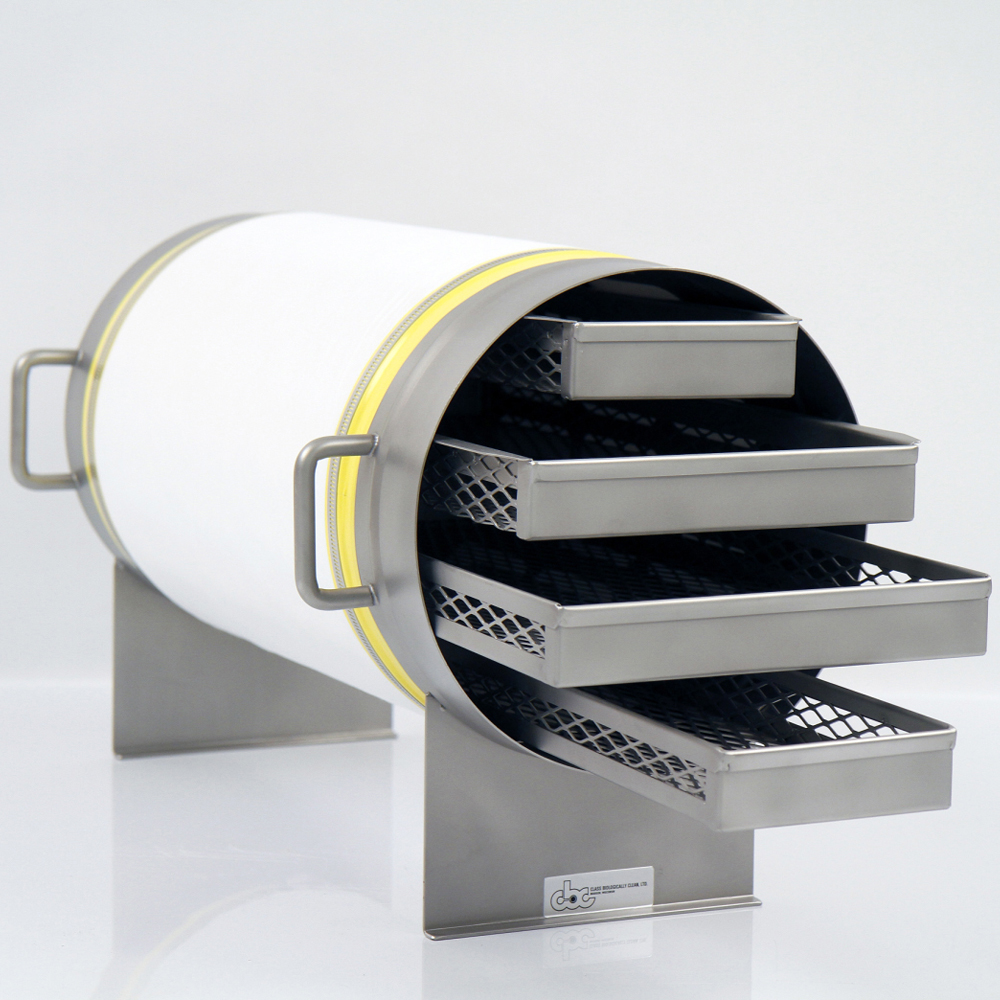

Pictured above is a Standard 12" (diameter) x 24" four tray Autoclave Sterilizing Cylinder (with optional support collar) fully wrapped with filter media.

(4) Four carrying handles

Constructed out of stainless steel with a glass bead finish.
