Provide Greater Air Flow and a Better Living Environment for the Animals!

Five Inch Diameter Isolator Filters


5" (Five Inch) Diameter Gnotobiotic Isolator Filters


Provide Greater Air Flow and a Better Living Environment for the Animals!

(Standard on most CBC isolators)

Pictured is a standard 5 inch (diameter) filter used in our isolators to maintain a controlled, uniform environment. The filter shown (with and without filter media) has a lower inlet port.

5" (Five Inch) Diameter Isolator Filters


With lower input port and upper outlet port to provide better air flow.

Filters are shipped "autoclave ready".

5" Diameter Filters come completely assembled and wrapped with DW4 filter media.

Includes: Filter stand, neoprene spacers, DW4 filter media, filter media clamps, 20 mil. frosty vinyl filter cover, rubber bands and filter cover clamps.   Parts also sold separately.

  • (Complete unit) 5" D x 20" H inlet (supply) filter with (3) wraps of filter media.
  • (Complete unit) 5" D x 20" H outlet (exhaust) filter with (2) wraps* of filter media.
  • 5" D x 20" H Replacement Filter Cover sold separately

* Note: Outlet (exhaust) filters on negative pressure isolator systems have (3) wraps of filter media.

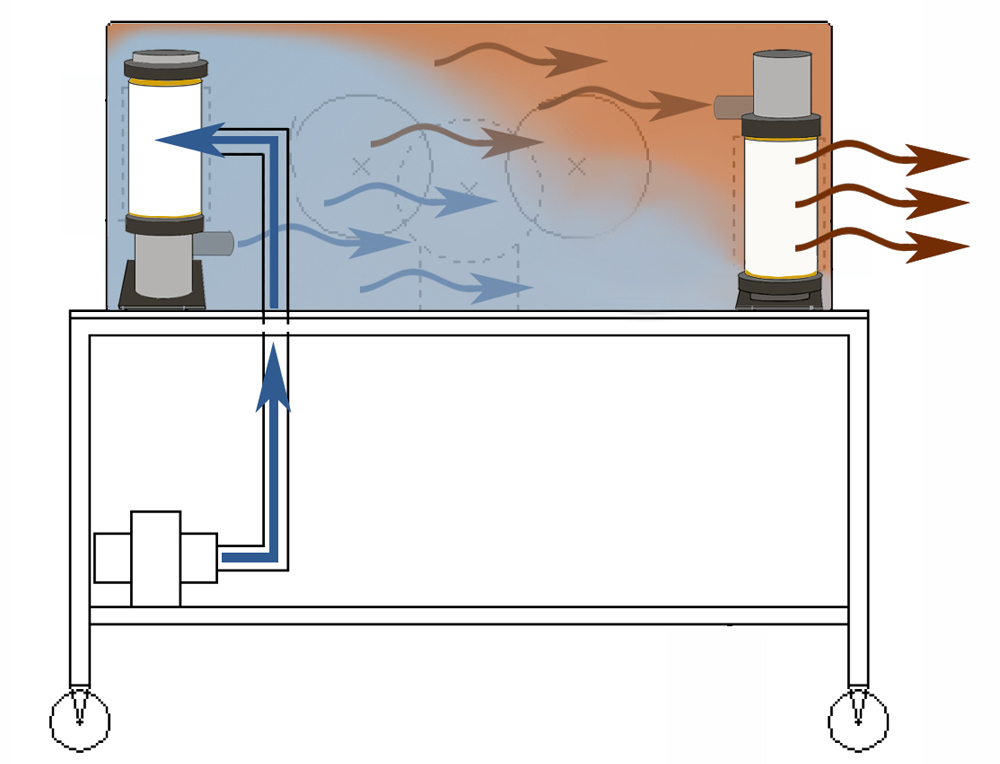

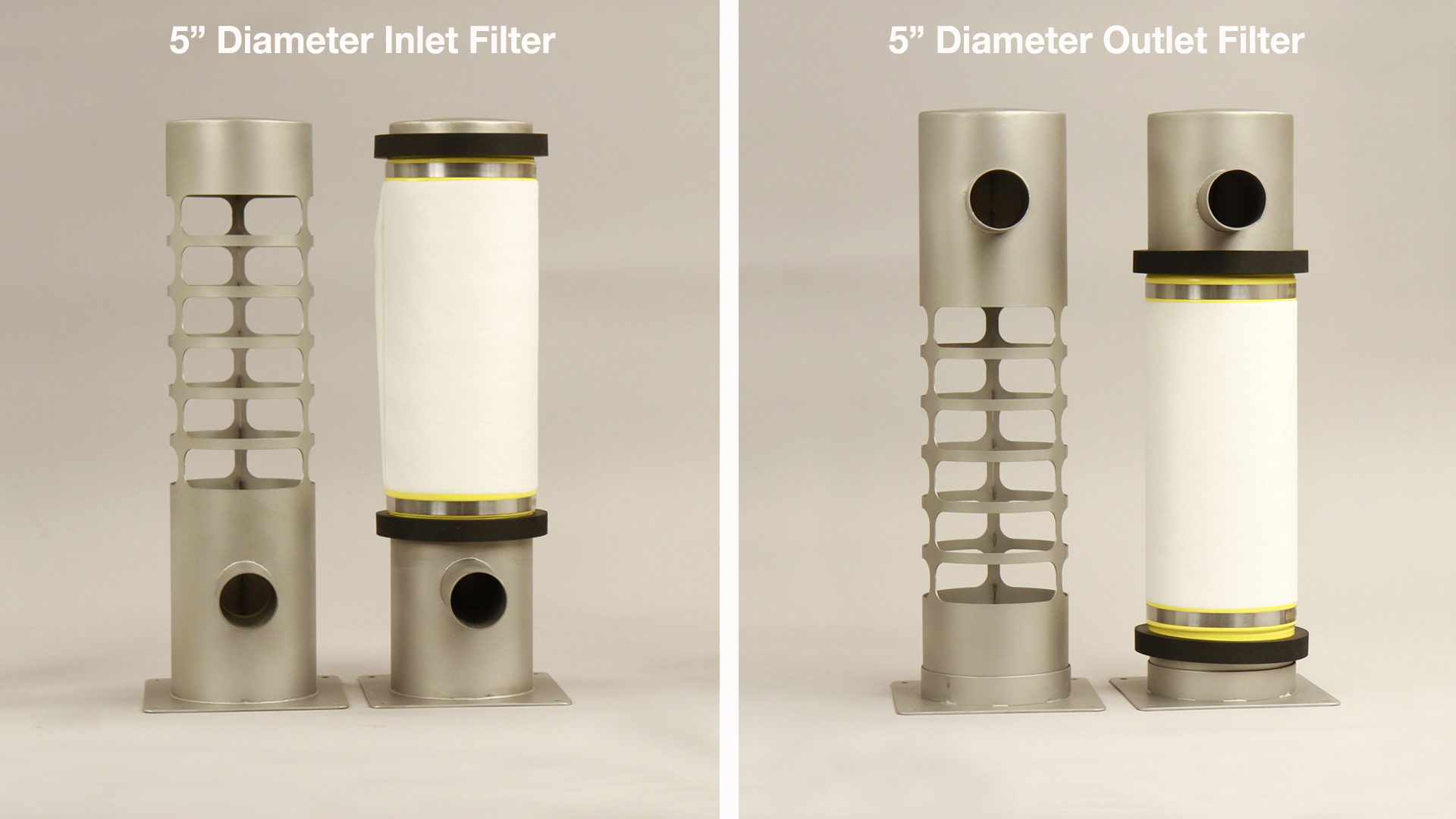

CBC's 5 inch isolator filters have a lower inlet port and upper outlet port to more efficiently remove warm, moist air. What's more, our 5 inch diameter design (vs. competitive 3 inch diameter) provides greater airflow. The larger filter diameter combined with CBC's unique inlet/outlet port design help improve the isolator's living environment.

Above: CBC's 5" isolator filter's lower inlet port and upper outlet port can more efficiently remove warm, moist air. What's more, our 5" diameter design (vs. competitive 3" diameter) provides greater airflow. The larger filter diameter combined with CBC's unique "inlet/outlet" port design help improve the isolator's living environment.


Other Filter Sizes:


  • 5" D x 32" H inlet filter
  • 5" D x 32" H outlet filter
  • 5" D x 32" H Filter cover
  • 3" D x 19" H inlet filter   - Learn more
  • 3" D x 19" H outlet filter   - Learn more
  • 3" D x 19" H Filter cover
  • Custom sizes available on request

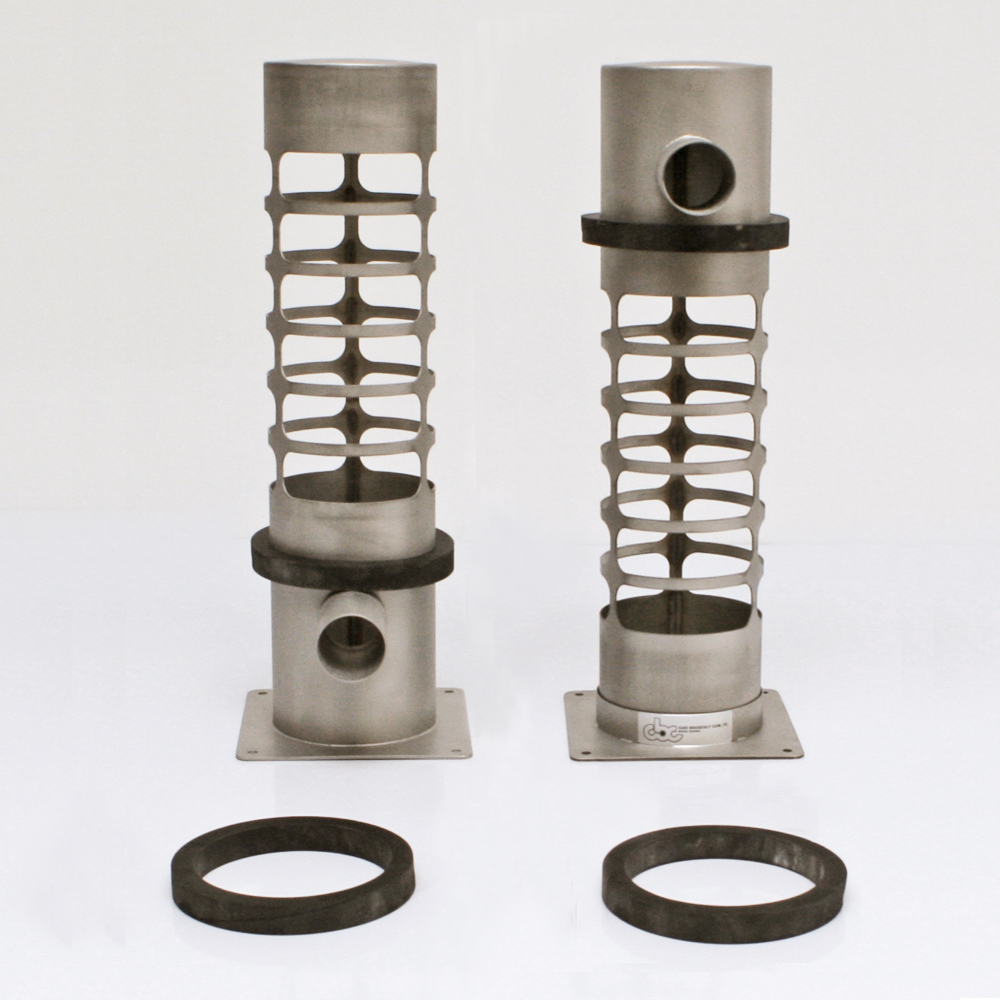

Unwrapped five inch diameter inlet and outlet isolator filter stands.

Above: Unwrapped 5" D x 20" H inlet and outlet isolator filter stands with neoprene spacers. Neoprene spacers

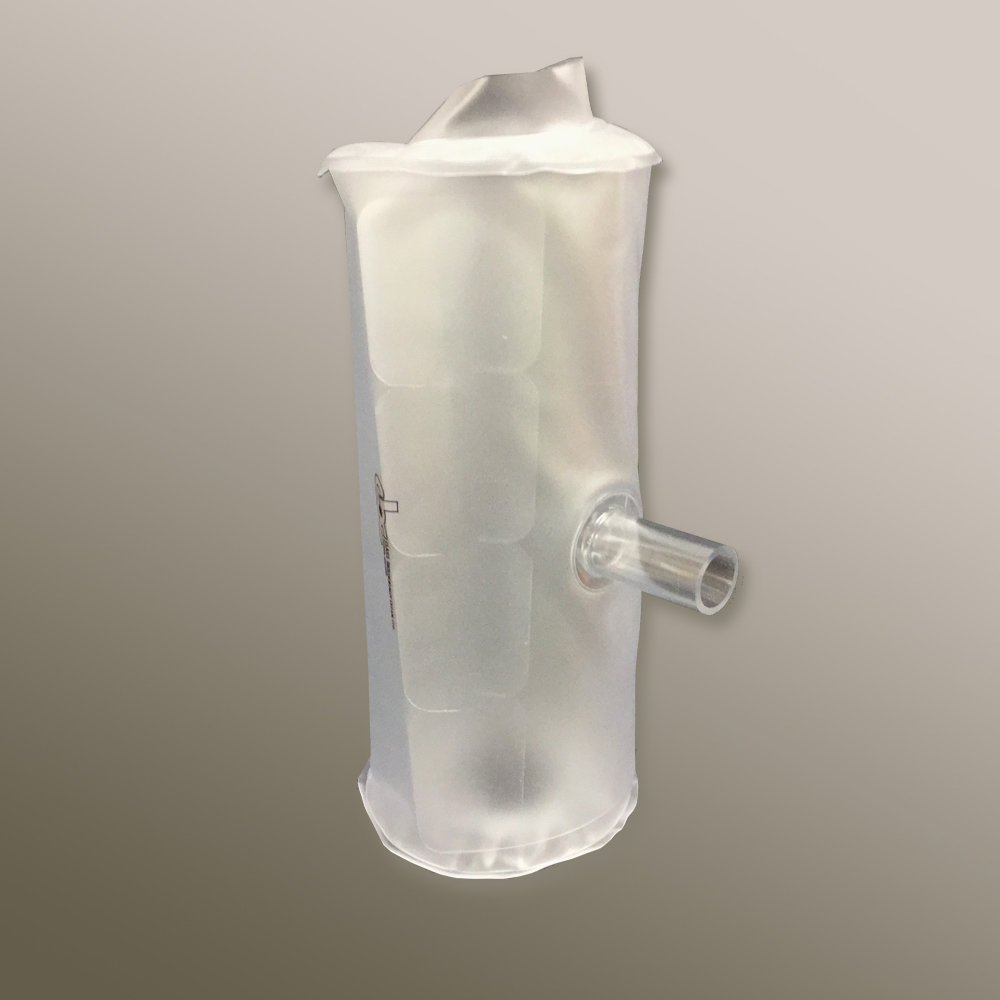

5 inch filter cover.

Above: 5" D x 20" H isolator filter cover. Made of 20 mil. frosty vinyl with double-strip seam seal.

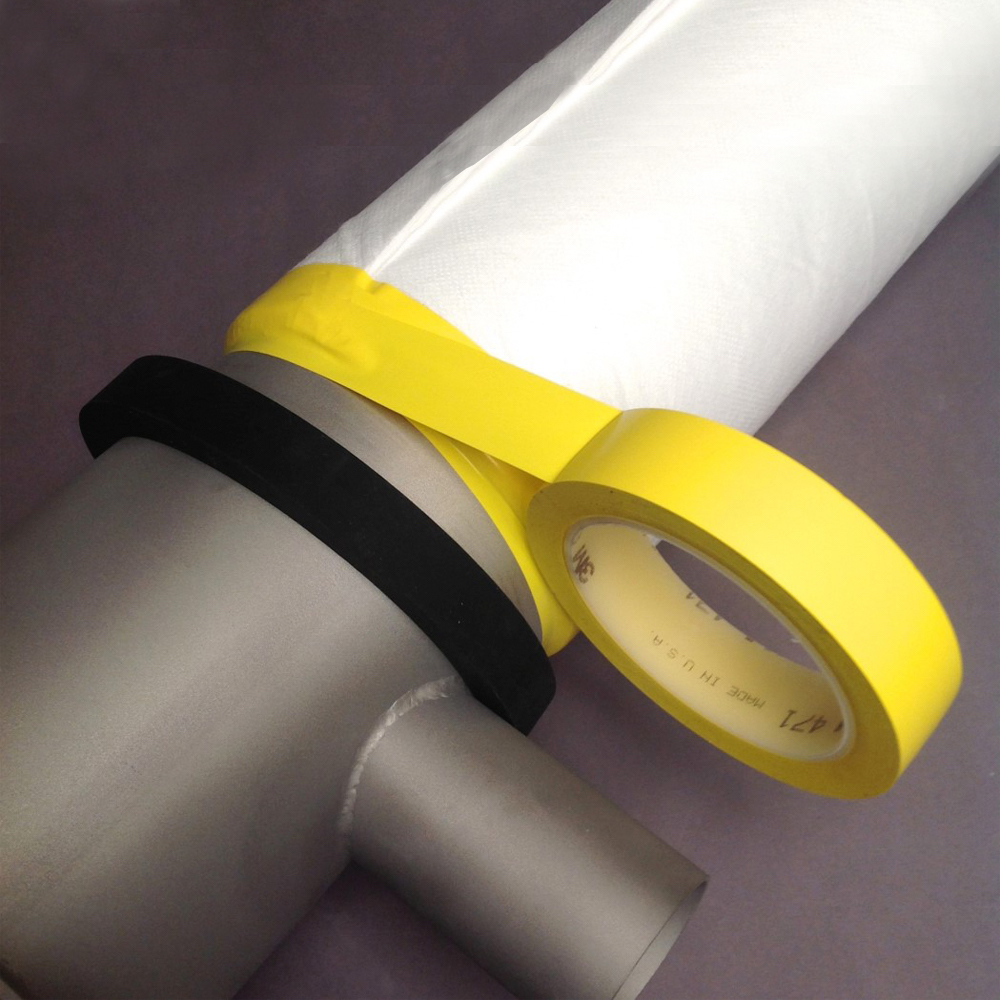

Vinyl tape for wrapping DW4 filter media around filter stand.

Above: 3M Vinyl tape for wrapping DW4 filter media around filter stand.

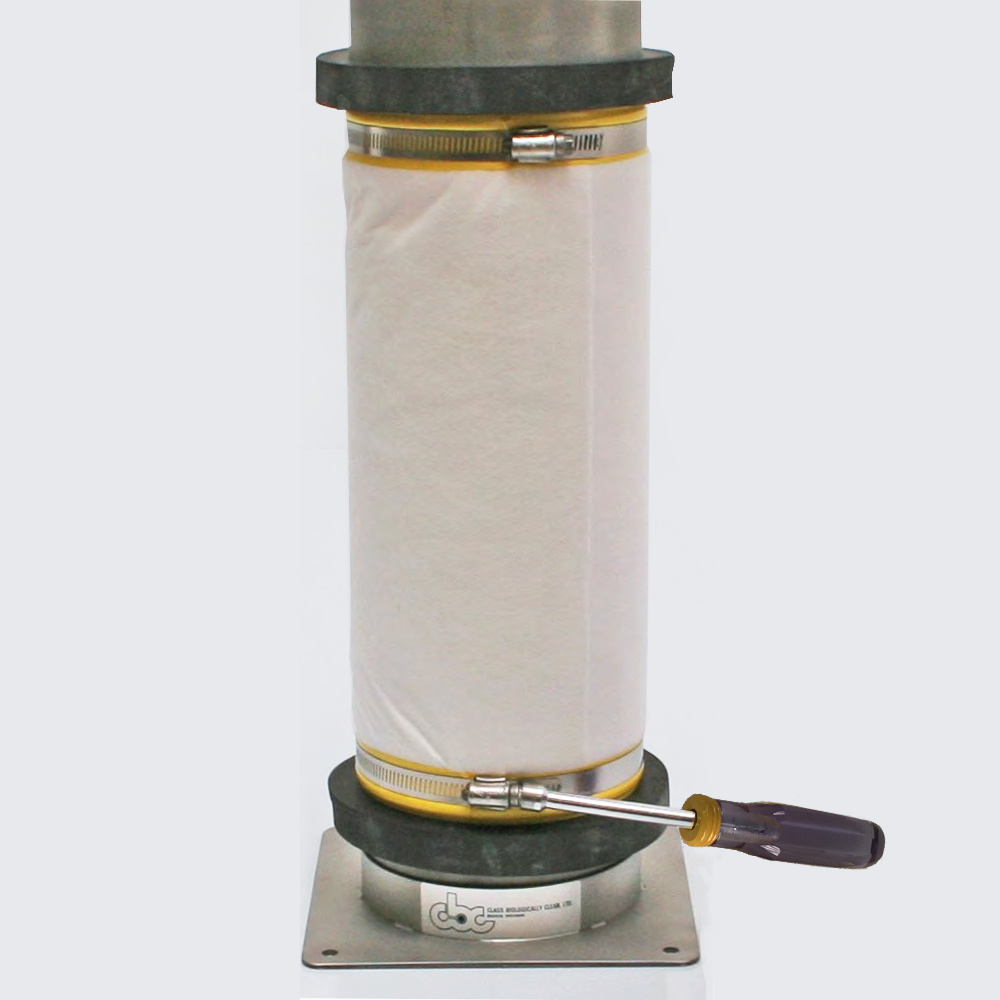

80 SS filter media clamps to secure filter media after autoclaving.

Above: Filter media clamps to secure filter media after autoclaving.

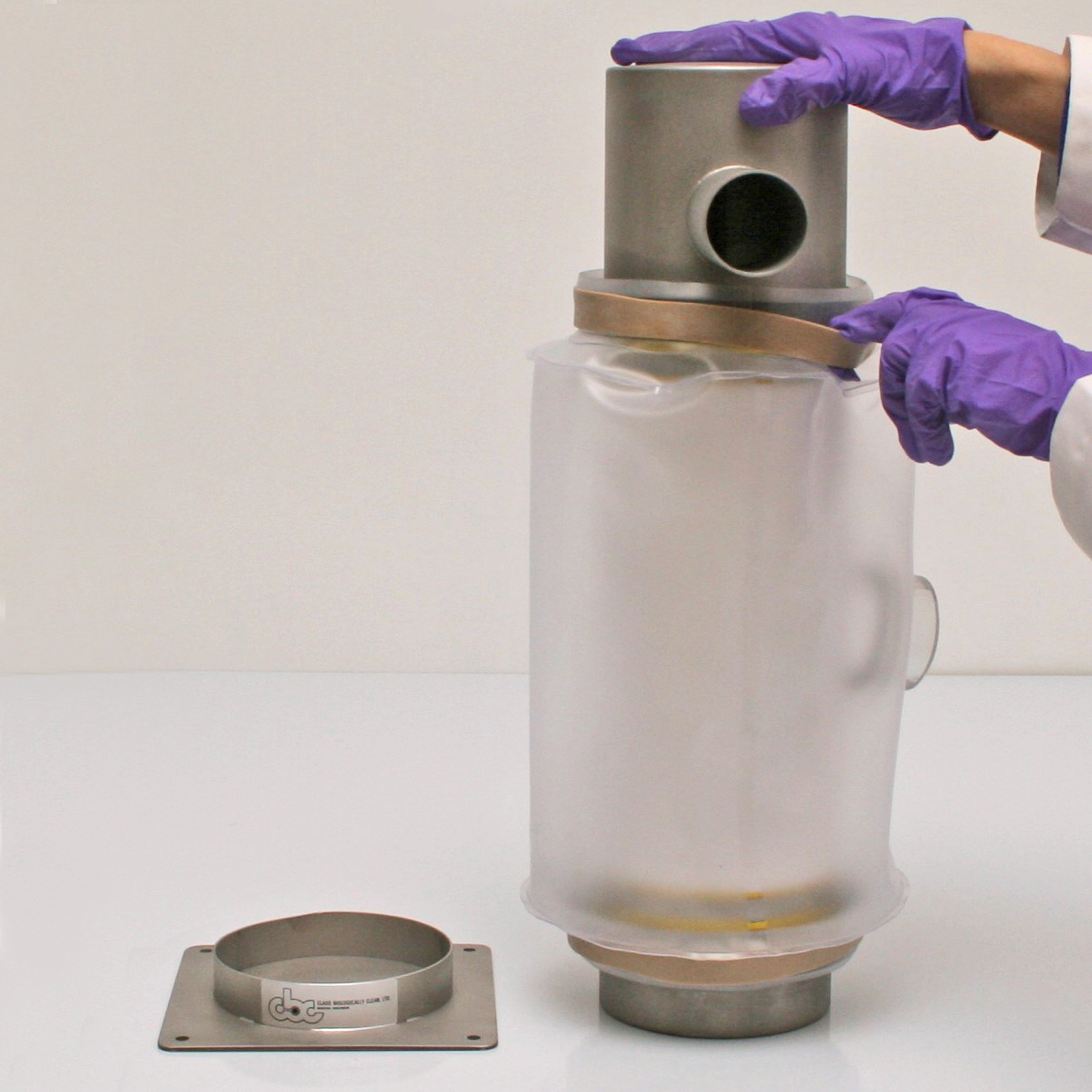

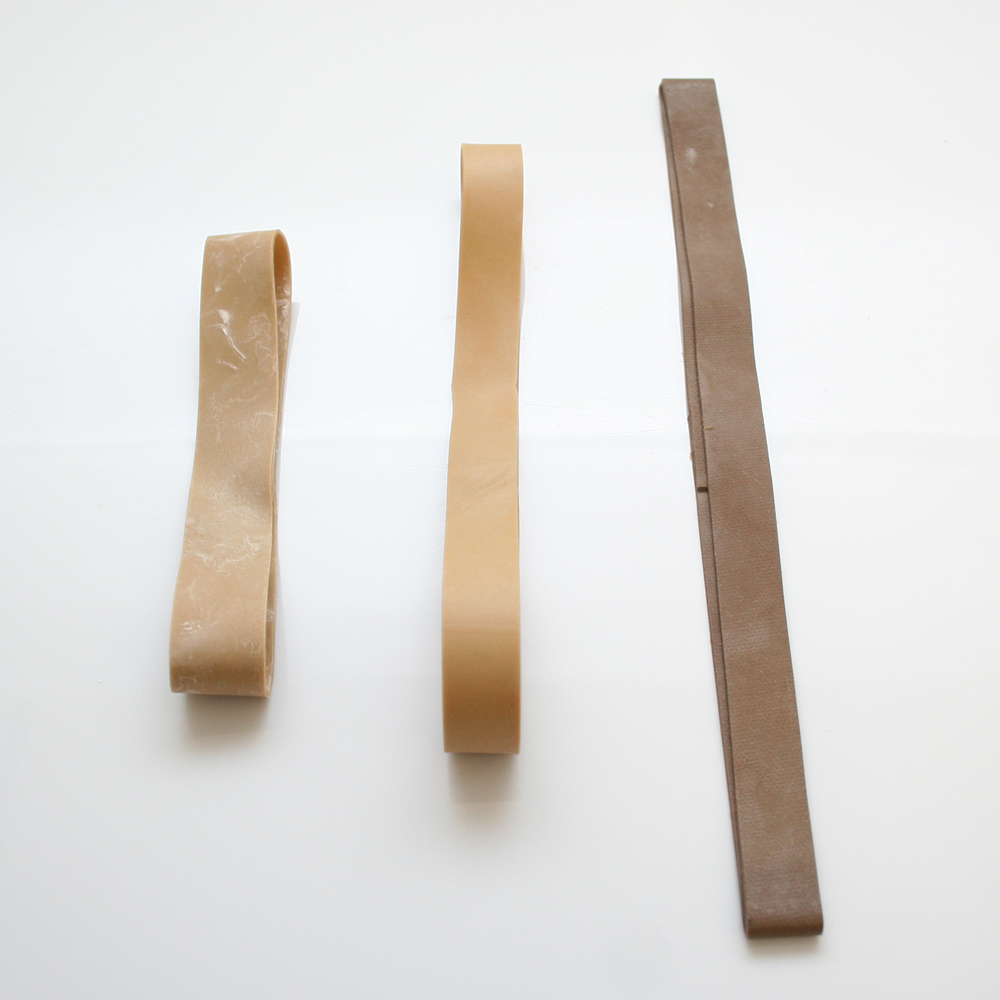

Five inch diameter rubber bands for attaching filter cover.

Above: 5" diameter rubber bands for attaching filter cover.

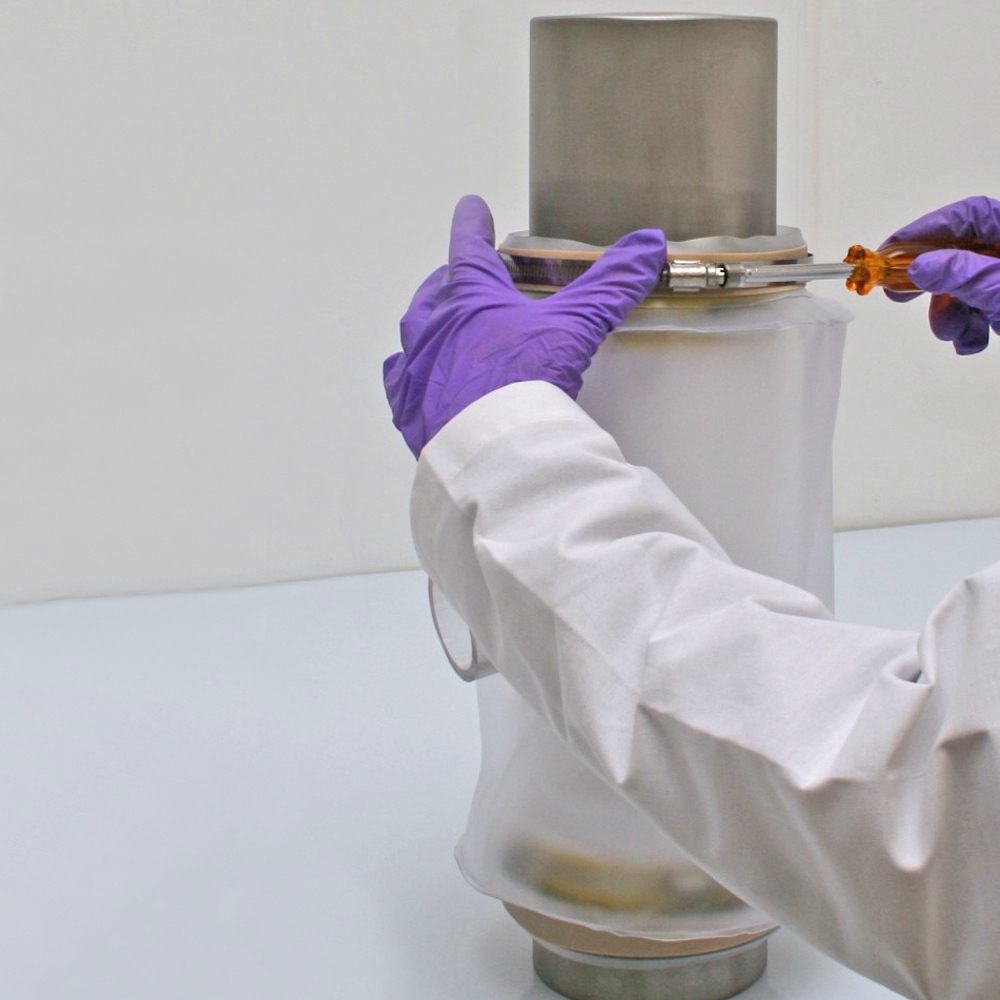

5 inch diameter filter cover clamp for securing 5 inch diameter filter cover.

Above: 5" D filter cover clamp for securing 5" D filter cover.

Pictured is a CBC Patent Clamp being used to connect a Standard Sterilizing Cylinder to a transfer sleeve.
Download a printable flyer about CBC's Sterilizing Cylinders. Click here to download flyer.

Download Printable Flyer

Download a printable flyer about CBC's Sterilizing Cylinders.

Download Printable PDF

Download Printable (EU) PDF

Other CBC Filters:

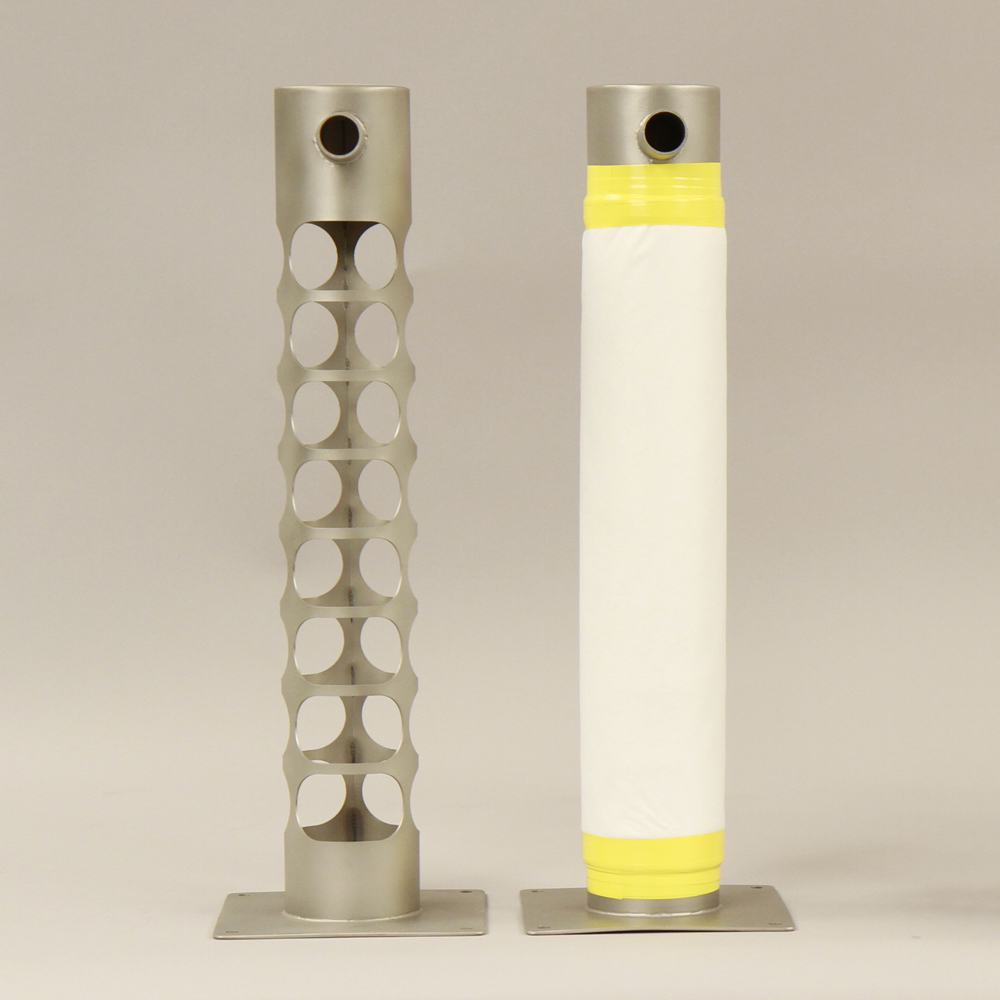

3 inch Diameter Isolator Filters for CBC Quad and Quarantine Isolators.
3" Diameter Isolator Filters

For isolators under 4' in length such as Quad Isolator systems and Quarantine Isolator systems.  Read more

Inlet and Outlet filter stands are the same. Custom sizes available on request.

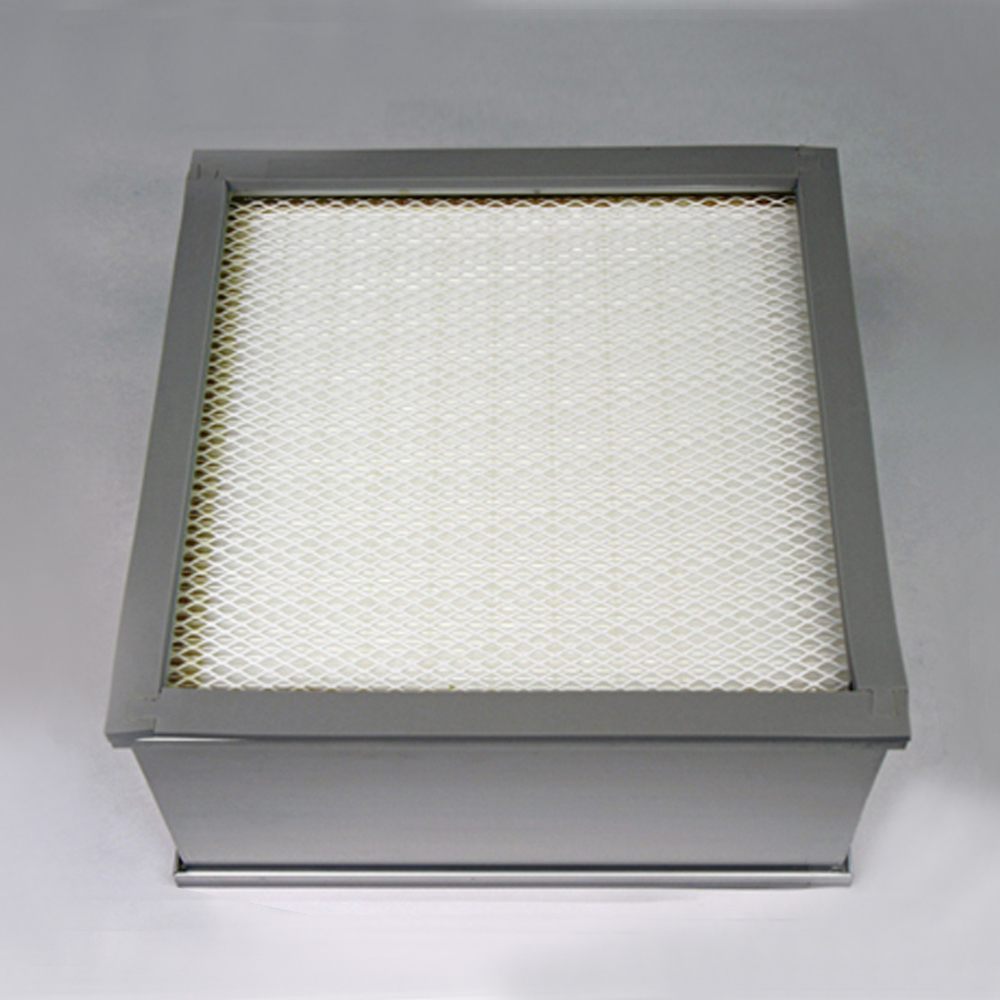

Round and square HEPA filters for gnotobiotic isolators, cleanrooms and containment units.
HEPA Filters

For gnotobiotic isolators, cleanrooms and containment units.  Read more

5" (diameter) x 5" (length), 5" (diameter) x 8" (length) round sizes. Custom square sizes.

Accessories and Components:

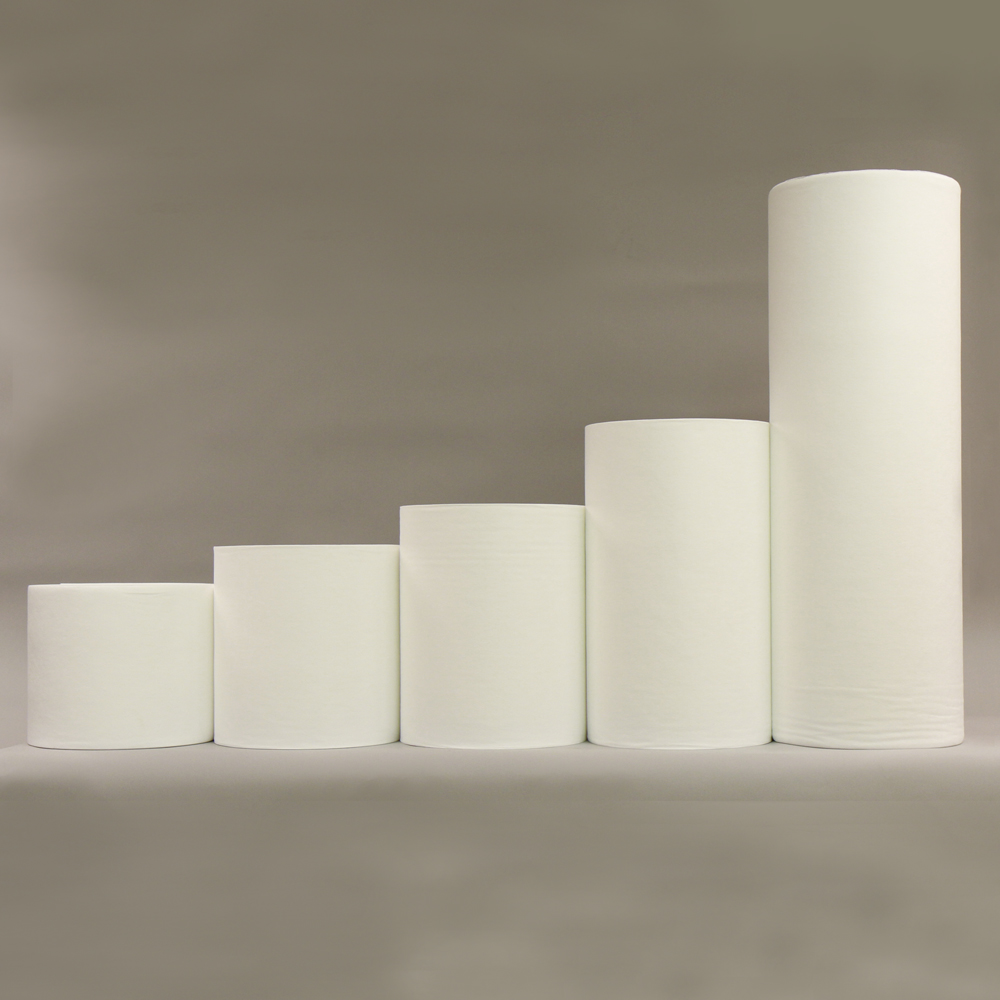

Precut filter media for Sterilizing cylinders and filters.
Pre-cut Filter Media

Save Material. Save Time.  Read more

DW4 filter media is precut to width to fit sterilizing cylinders and isolator filters.

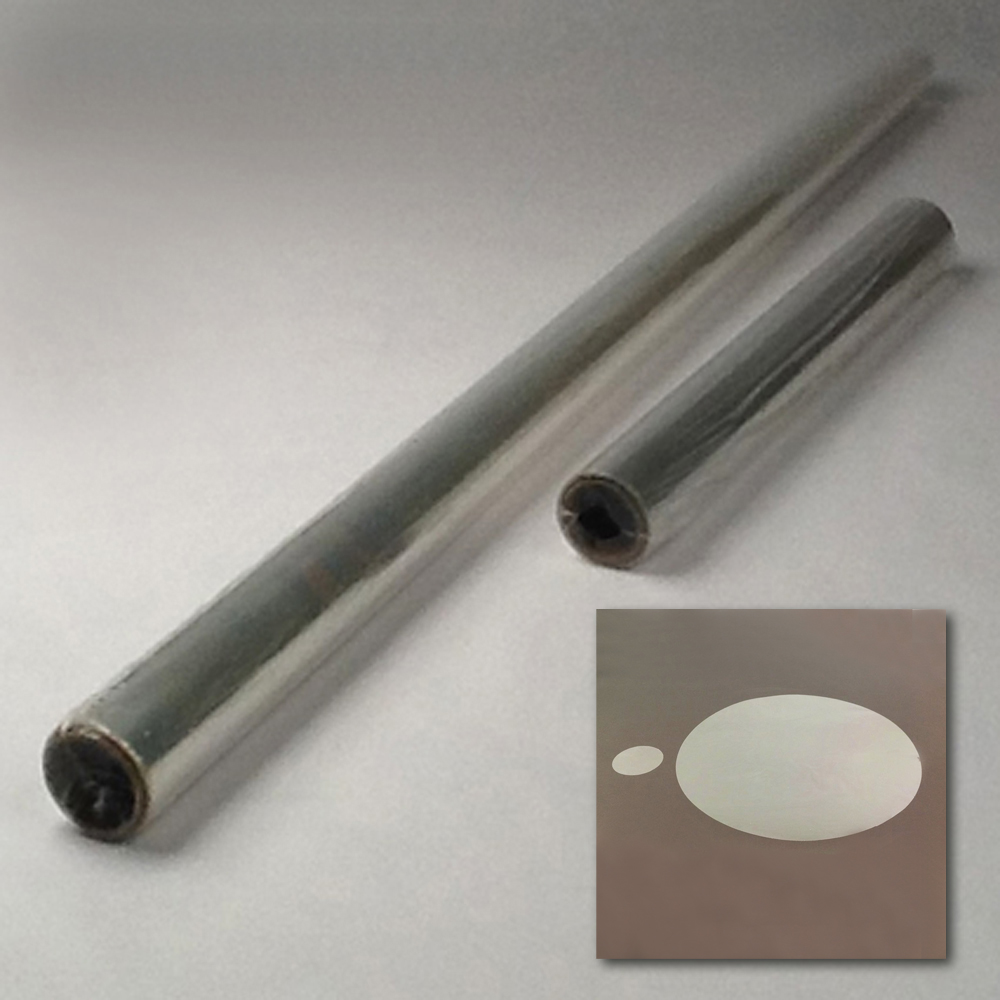

Mylar film in rolls and precut disc shapes to cover open end of sterilizing cylinders and filter stands before autoclaving. Precut mylar discs save time!
Mylar Film

Save Material. Save Time.  Read more

Mylar film in rolls and precut disc shapes to cover open end of sterilizing cylinders and filter stands before autoclaving. Precut mylar discs save time!
Vinyl Tape.
Vinyl Tape

1" wide. 36 yards.  Read more

For wrapping filter media around sterilizing cylinders and filters.
Mylar Tape.
Mylar Tape

1" wide. 36 yards.  Read more

For attaching mylar film to sterilizing cylinders and isolator filters before autoclaving.
Transfer Sleeves used for isolator to isolator attachments and sterilizing cylinder to isolator connections.
Rubber bands for 5 inch diameter isolator filters and attaching transfer port caps.
Tear-Aid for minor flexible film canopy and glove repairs.
Stainless steel, acrylic polypropolene transfer ports.
Transfer port caps with and without flanges.
Transdisk allows you to transfer mice without a transfer sleeve.
Original lap-seam seal flexible film, germfree isolator.
Manufacturing high quality, flexible film isolators for universities, researchers and germ-free animal producers since 1978.

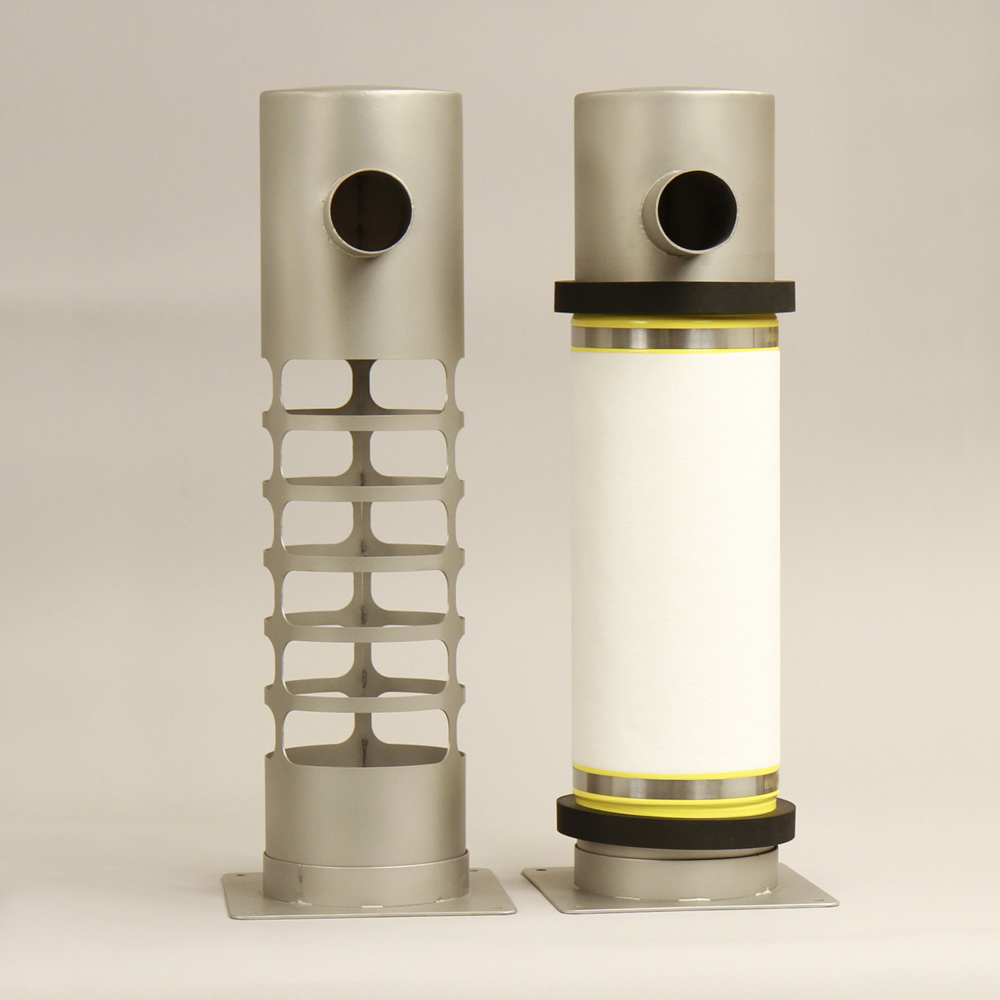

Pictured is a standard 5 inch (diameter) filter used in our isolators to maintain a controlled, uniform environment. The filter shown (with and without filter media) has an upper outlet port.

Pictured is a standard 5 inch (diameter) x 20 inch (height) outlet filter used in our isolators to maintain a controlled, uniform environment.

5" diameter filters are standard on most CBC gnotobiotic isolator systems.

The filter shown (with and without filter media) has an upper outlet port.
